Description

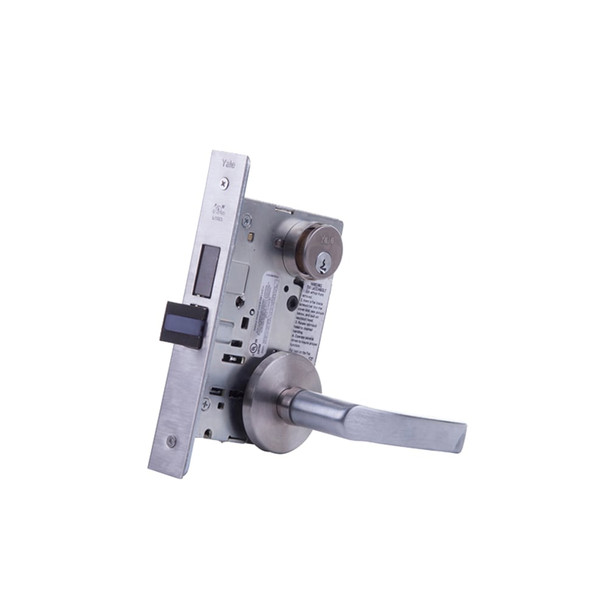

The Yale 8800 Series mortise lock delivers commercial-grade security for high-traffic doors in offices, retail, and institutional settings. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and field-reversible design to simplify installation and reduce costs on mixed-handing projects.
Compatible with standard 1-3/4" doors and adjustable to 3-1/4" thick doors, this lock includes a 6-pin keyed-random cylinder with two keys and a reversible curved-lip strike. As an authorized Yale dealer, E.D. Locks provides expert specification guidance and finish selection. Contact sales@edlocks.com or call 1-877-207-6067 for installation questions or custom configurations.
Specifications
- ANSI/BHMA Certified A156.13, Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard, to 3-1/4" available to order
- Front: Bevel front, free-floating, adjustable flat to 1/8" bevel
- Cylinder: Brass, 6-pin keyed-random, includes two keys (7-pin available to order)
- Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths to special order, all reversible)
- Finishes: 17 commercial finishes available
- Warranty: 10 years mechanical
