Description

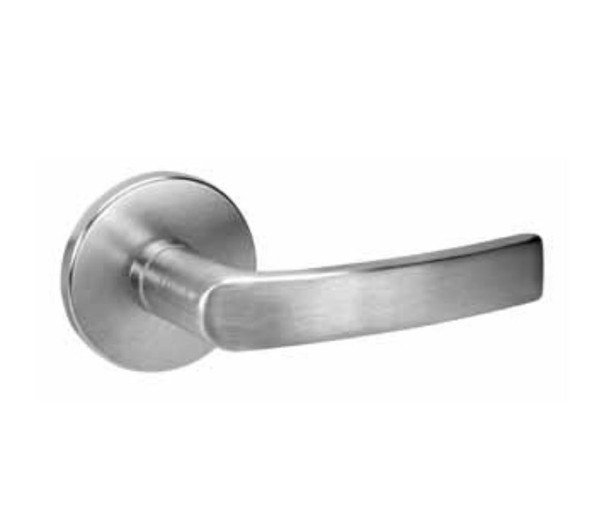

The Yale 8800 Series mortise lock delivers commercial-grade security for interior and passage doors in offices, schools, and facilities. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and a 3/4 inch throw latchbolt designed for long-term durability in high-traffic environments.
Field-reversible handing and a standard 2-3/4 inch backset accommodate 1-3/4 inch to 3-1/4 inch thick doors. Keyed randomly with two keys included; contact our team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection from 17 available colors, and expert installation guidance as an authorized Yale dealer.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Windstorm Certified
- Mechanism: Stainless steel
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inch standard; up to 3-1/4 inch available
- Front: Bevel front, free-floating to adjust flat to 1/8 inch bevel
- Cylinders: Brass, 6-pin keyed-random with two keys standard; 7-pin available
- Handing: Field reversible
- Strikes: 1-1/4 inch curved lip for 1-3/4 inch doors; reversible
- Finishes: 17 available
- Warranty: 10 years mechanical
