Description
The Yale 8800 Series mortise lock is engineered for demanding commercial applications requiring uncompromising strength and durability. This Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and field-reversible design that simplifies installation and reduces costly callbacks on projects of any scale.

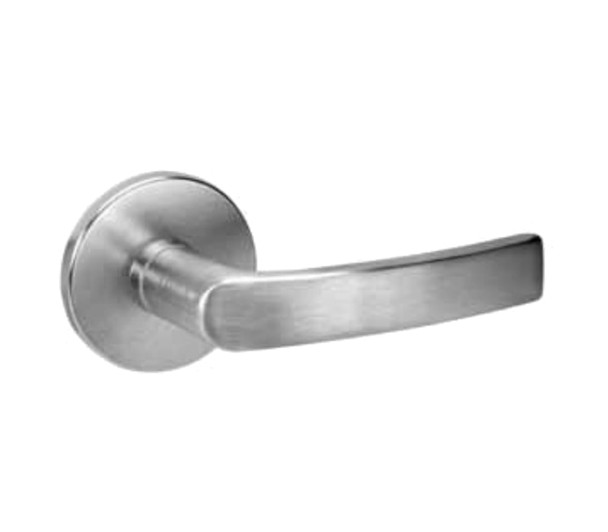

The MOR8847FL trim pack suits standard 1-3/4 inch doors with a 2-3/4 inch backset and includes a reversible strike, brass 6-pin cylinder, and two keys. As an authorized Yale dealer, E.D. Locks offers expert specification assistance and a 10-year mechanical warranty. Contact our team at sales@edlocks.com or 1-877-207-6067 for handing verification, finish selection from 17 options, or custom configurations.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inch standard
- Cylinder: Brass, 6-pin, keyed-random (2 keys included)
- Front: Bevel front, free-floating 1/8 inch adjustment
- Strike: 1-1/4 inch curved lip, reversible
- Mechanism: Stainless steel
- Warranty: 10 year mechanical
- Available Finishes: 17
