Description

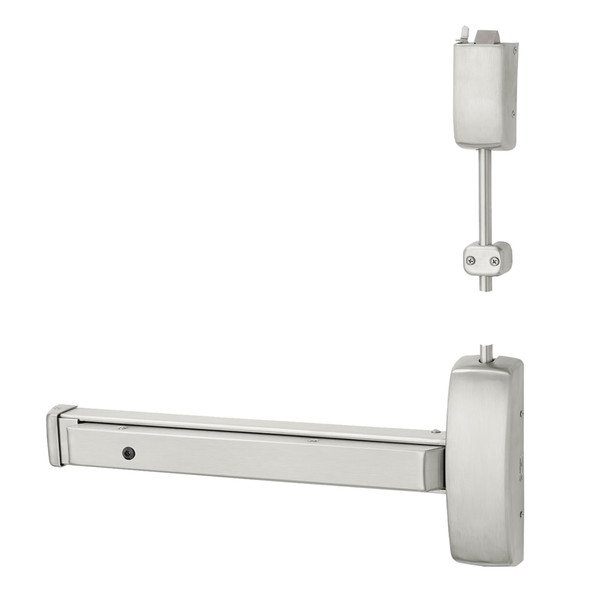

The Sargent NB8743E is a heavy-duty exit device built for commercial and institutional facilities requiring Grade 1 security and reliability. Designed for 1 3/4" wood or metal doors, this rim-mounted escape hardware exceeds ANSI/BHMA standards and features modular construction with minimal maintenance needs, making it ideal for buildings where durability and life-cycle cost matter.
This left-hand reverse (LHR) model fits 24" to 32" door widths without cutting. Compatible with both wood and metal doors, the 80 Series supports delayed egress, alarmed, and electric latch retraction options for specialized applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, code compliance review, and installation guidance tailored to your facility.
Specifications
- Brand: Sargent
- Model: NB8743E ETF LHR 32D
- Type: Rim Exit Device, 80 Series
- Configuration: Left-Hand Reverse (LHR)
- Door Thickness: 1 3/4" (44mm)
- Door Width Range: 24" to 32" (61cm to 81cm)
- Rail Type: E Rail, no cutting required for 32" door
- Door Material: Wood or Metal
- Minimum Stile: 4 1/2" (114mm) with trim, 3 1/2" (89mm) without trim
- Standard: Exceeds ANSI/BHMA Grade 1
- Options: Delayed egress, alarmed exit, electric latch retraction
