Description

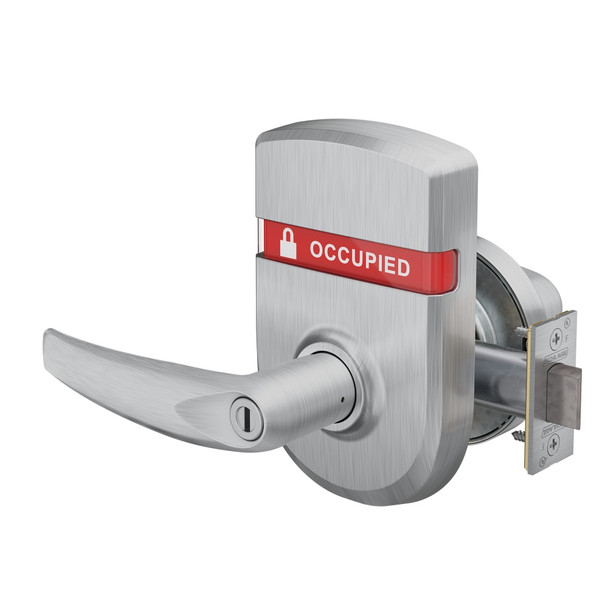

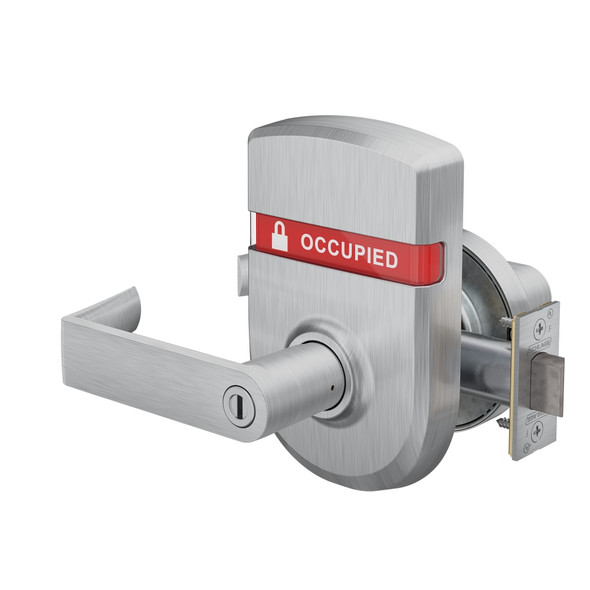

The Schlage ND40S is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, and retail environments. This non-handed lock delivers proven reliability with extensive function, keying, and finish options that solve access control and security challenges across nearly any building application.
The ND40S accommodates standard door thicknesses from 1 5/8" to 2 1/8" with a 2 3/4" backset and includes a 6-pin Everest 29 keyway with two keys per lock. Interchangeable core and high-security cylinders are available for enhanced master keying flexibility. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration, installation, and keying options tailored to your facility.
Specifications
- Grade 1 certified; exceeds 3-million operating cycles
- Door thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Latch bolt: Steel, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway, two keys included
- Strike: ANSI curved lip 1 1/4" x 4 7/8" x 1 3/16"
- Keying options: Master, grand master, construction, interchangeable core
- Finish options: Brass, bronze, stainless steel
- Warranty: Ten-year limited
