Description

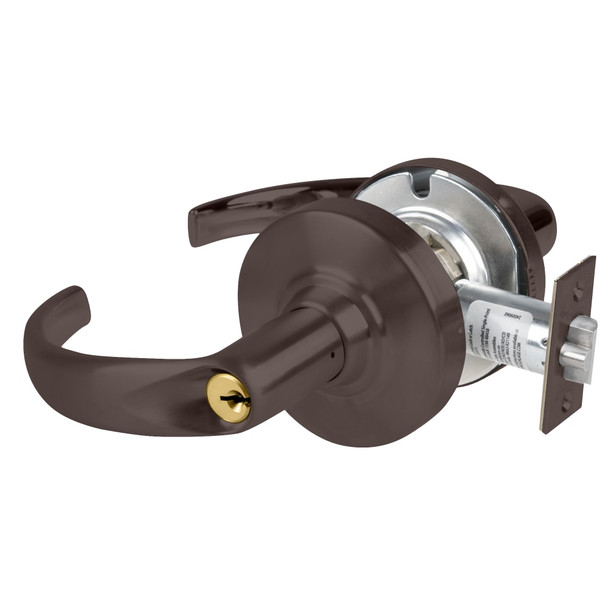

The Schlage ND80PD is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, office and retail environments. Non-handed design simplifies installation across nearly any application, with proven reliability exceeding 3 million operating cycles and a ten-year limited warranty.
Compatible with standard door thicknesses from 1 5/8" to 2 1/8" and available in multiple backset options (2 3/4" standard). Features 6-pin Everest 29 S123 keyway with master keying capabilities and wire-wireless access control compatibility. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing and finish selection.
Specifications
- Grade: 1
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; 2 3/8", 3 3/4", 5" optional
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled; brass, bronze or stainless steel
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway; two nickel silver keys included
- Strike: ANSI curved lip, 1 1/4" x 4 7/8" x 1 3/16" standard
- Lock Chassis: Zinc plated
- Warranty: Ten-year limited
