Description

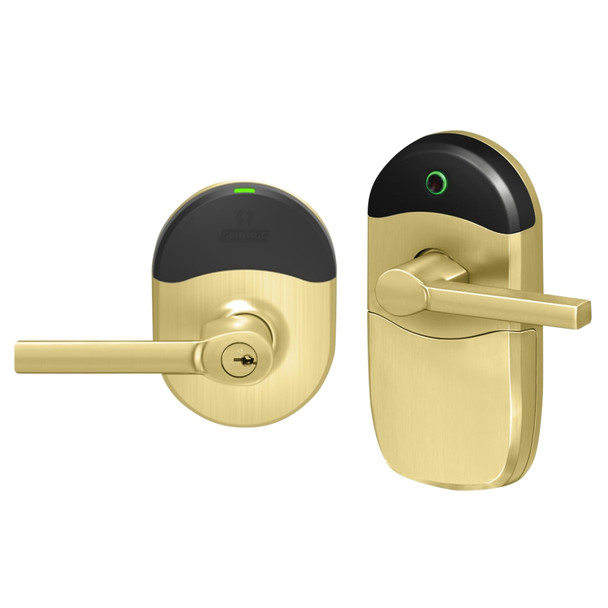

The Schlage Electronics NDEBP LAT 606 is an integrated pushbutton access control reader built on Schlage's ND mechanical lock platform. It solves security needs for facilities requiring multi-technology credential support, serving commercial properties, offices, and apartment buildings that need flexible access options without replacing existing lock hardware.
This reader supports proximity (125 kHz), smart card (13.56 MHz), NFC, and Bluetooth credentials, with Wi-Fi connectivity and optional ENGAGE Gateway for real-time communication. It fits standard 161L cylindrical door prep with minor modifications and accepts Schlage 6-pin Everest cylinders plus common Sargent, Corbin Russwin, Medeco, Yale, and Falcon cylinders. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for keying options, gateway setup, and installation guidance.
Specifications
- Multi-technology reader: Proximity (125 kHz), Smart Card (13.56 MHz), NFC
- Bluetooth Low Energy (version 4.2) support on NDEB model
- Connectivity: Wi-Fi (IEEE 802.11 b/g/n) with WPA2, WPA, WEP, 802.1x
- Security: TLS 1.2, AES 256-bit encryption
- Door prep: Cylindrical 161L with minor modifications
- Standard keyway: Schlage 6-pin Everest 29 S123
- Cylinder compatibility: Schlage, Sargent, Corbin Russwin, Medeco, Yale, Falcon
- Cylinder options: Key-in-lever, FSIC, SFIC
- Functions: Storeroom, Office, Privacy, Apartment
