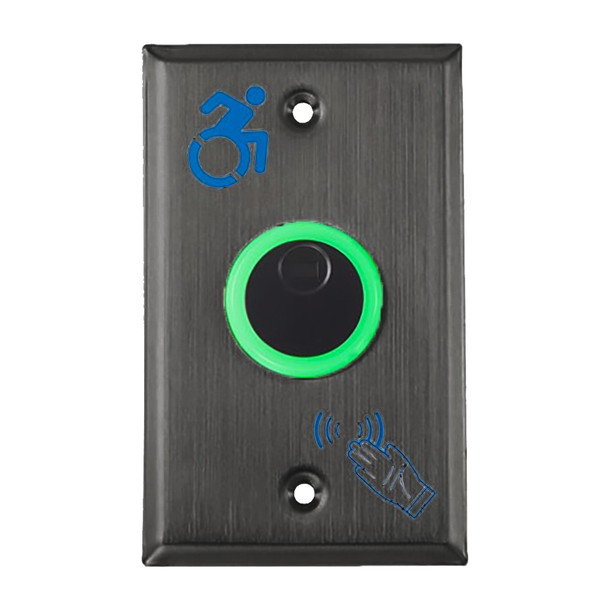

NTB-1A-BK Alarm Controls Touchless Actuators

These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring. These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.

Standard Features:

• Battery or DC powered (optional)
• Low battery LED status indicator
• Wired communication
• Stainless steel with vandal resistant face plate
• Sensor detection range up to 4" for applications that require precise activation
• Built in obstruction detection
• Field-configurable bi-color (red/green) LED status indicators
• Selectable time delay 1 to 10 seconds
• Field-configurable on/off audible tones configurable via jumper
• Plate screened "Wave To Open"
• For use with swinging and sliding door applications

Options:

• NTB-1 with single gang wall plate
• NTB-1A single gang with ADA symbol
• NTB-2 with double gang wall plate
• NTB-2A double gang with ADA symbol
• NTB-3 with narrow stile wall plate
• NTB-3A narrow stile with ADA symbol
• Available in stainless steel (standard), black (BK), and Duranodic Dark Bronze (DURO) finishes

Certifications & Listings:

• CE Certified
• UL294 Listed

Electrical:

• DPDT relay rated 2A at 30 VDC/VAC
• 2 AA alkaline batteries (included)
• Optional 12 or 24 VDC hard-powered

Operating Temperature:

•  -13 to + 131 F (-25 to 55 C)
