Description

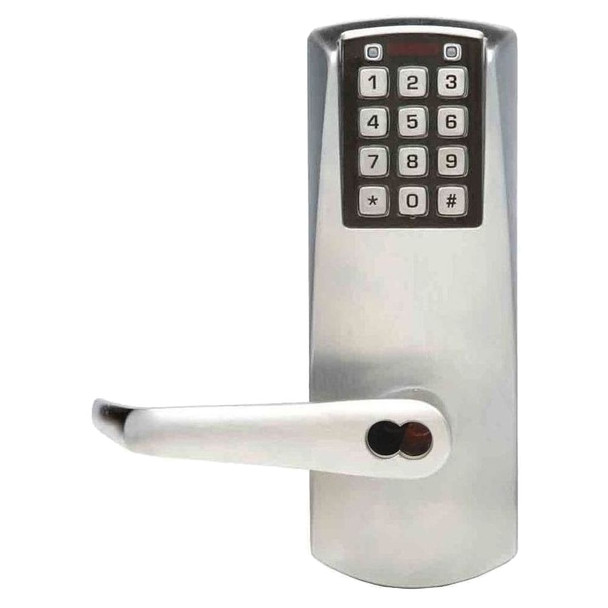

The DormaKaba P201YBLL-626 PowerPlex exit trim is a vandal-resistant electronic keypad solution for high-traffic commercial doors. It pairs with Yale 7100 and Corbin ED5200 rim exit devices to deliver secure, code-based access control without traditional keys. Ideal for schools, hospitals, offices, and facilities needing reliable emergency egress with audit trails.
This trim supports 6/7-pin SFIC interchangeable cores (core not included) and fits both cylindrical and mortise locks with standard backsets. Compatible with Kaba 1539 cylinders in Schlage C keyway. As an authorized DormaKaba dealer, E.D. Locks provides expert configuration assistance and keying support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 to verify your specific door setup and ensure proper installation.
Specifications
- Brand: DormaKaba
- Model: P201YBLL-626-41
- Finish: Satin Chrome
- Keypad Type: Numeric, vandal-resistant solid metal pushbuttons
- Handing: Non-handed, pre-assembled for left-hand (field adjustable)
- Cylindrical Backset: 2 3/4 in. (70 mm) or 2 3/8 in. (60 mm)
- Mortise Backset: 2 3/4 in. (70 mm)
- Cylindrical Latches: 1/2 in. (13 mm) or 3/4 in. (19 mm) throw
- Mortise Latches: 3/4 in. (19 mm) or 1 in. (25 mm) deadbolt (optional)
- Strikes: ANSI A115.3 T-Strike and A115.2 ASA Strike (cylindrical)
- Minimum Stile Required: 5 in. (127 mm)
- Core Prep: 6/7-pin SFIC, core not included
- Key Override: Kaba 1539 6-pin cylinder, Schlage C keyway
