Description

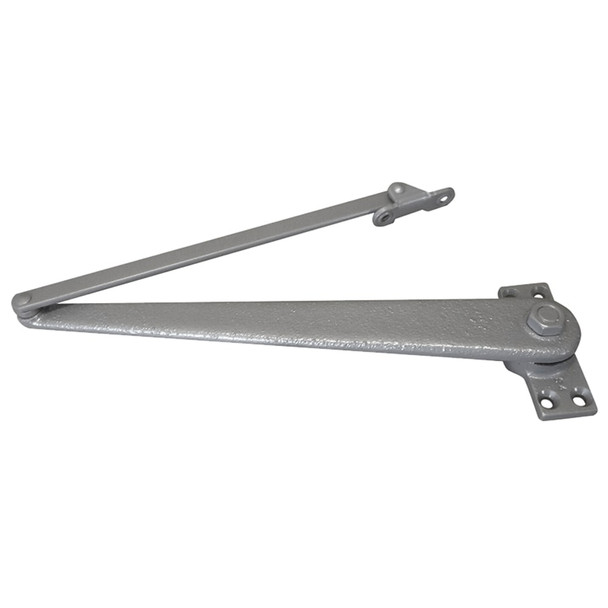

The LCN PAH60 is a heavy-duty door holder designed for commercial and institutional applications requiring reliable, hands-free door positioning. Engineered for left-hand swing doors, this Grade 1 device uses a cast iron body with adjustable spring tension (sizes 1-6) and a 1.25-inch diameter piston to suit doors up to 5 feet tall indoors or 4 feet outdoors. Ideal for high-traffic facilities needing ADA-compliant access control.
The PAH60 mounts on the hinge side or top jamb with a regular or parallel arm configuration. It features concealed adjustment valves for backcheck, closing, and latching speeds, plus a built-in Cush-N-Stop function to protect against impact damage. As an authorized LCN dealer, E.D. Locks offers expert installation guidance, finish options including powder coat and optional SRI primer for corrosive environments, and direct support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: PAH60 LH
- Hand: Left Hand
- Body Material: Cast Iron
- Piston Diameter: 1.25 inches
- Pinion Journal: 0.75 inches diameter, heat treated
- Spring Range: Adjustable 1-6
- Door Size: Up to 5 feet interior, 4 feet exterior
- Cycle Rating: 2,000,000 cycles
- Grade: 1
- Installation Options: Hinge side, top jamb, parallel arm
- ADA Compliant: Yes
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer
