Description

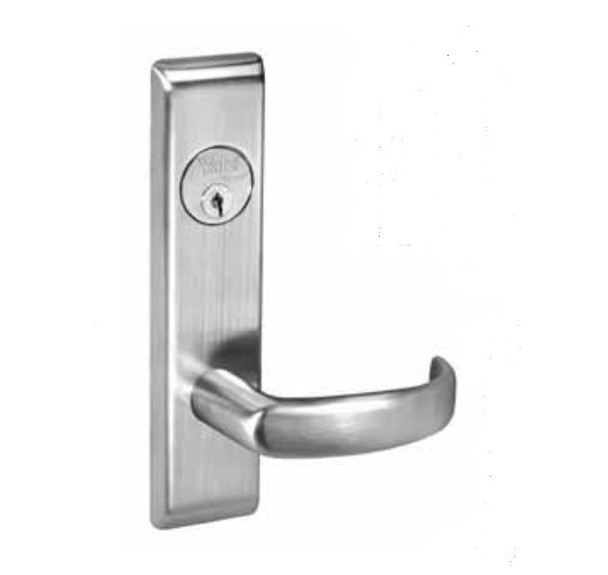

The Yale 8800 Series mortise lock (PBCN8801FL) delivers ANSI/BHMA Grade 1 security for demanding commercial applications. Built with reinforced stainless steel deadbolts and heavy-duty, vandal-resistant trim, it's ideal for facilities requiring maximum durability and strength. Field-reversible design and quick lever handing simplify installation on doors 1-3/4" to 3-1/4" thick.
This lock is compatible with standard mortise installations and ships with a 6-pin keyed-random cylinder and two keys. UL/cUL fire-rated to 3 hours and backed by a 10-year mechanical warranty. As an authorized Yale dealer, E.D. Locks provides expert support: call 1-877-207-6067 or email sales@edlocks.com for specification verification, keying options, and finish selection.
Specifications
- Brand: Yale/Accentra
- Series: 8800
- Model: PBCN8801FL
- Finish: Satin Chrome (626)
- Certification: ANSI/BHMA A156.13 Grade 1
- Fire Rating: UL/cUL 3-hour rated
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard; up to 3-1/4" available to order
- Front: Bevel front, free-floating (flat to 1/8" standard bevel)
- Cylinders: Brass, 6-pin keyed-random (7-pin available to order)
- Keys: Two furnished standard
- Reversibility: Field reversible
- Strike: 1-1/4" curved lip for 1-3/4" door standard; reversible
- Available Finishes: 17
- Warranty: 10 year mechanical
