Description

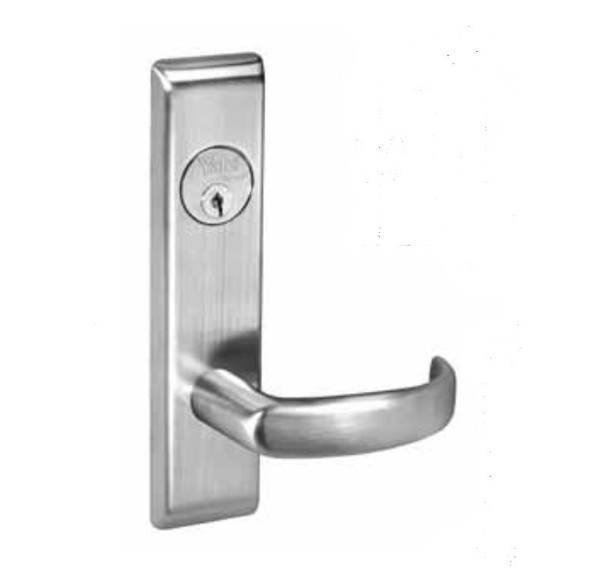

The Yale 8800 Series mortise lock delivers commercial-grade security for doors in offices, hospitals, schools and high-traffic facilities. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim designed to withstand years of demanding use while providing reliable access control.
Field-reversible handing and a standard nonhanded strike simplify installation on 1-3/4" standard doors (up to 3-1/4" thick available). The 6-pin keyed-random brass cylinder ships with two keys; 7-pin cylinders are available to order. As an authorized Yale dealer, E.D. Locks provides expert installation guidance and finish selection assistance. Contact our team at sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" to order
- Front: Bevel front, free-floating (flat to 1/8" standard bevel)
- Cylinder: Brass, 6-pin keyed-random with two keys; 7-pin available
- Strike: 1-1/4" curved lip for 1-3/4" door standard; reversible
- Finishes: 17 finishes available
- Field Reversible: Yes
- Warranty: 10 year mechanical
