Description

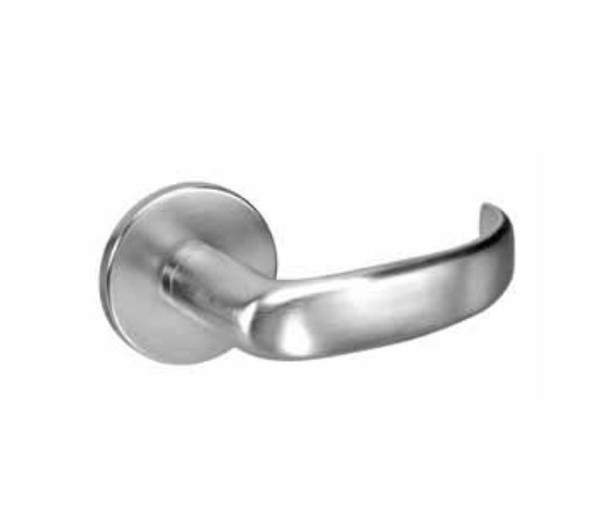

The Yale 8800 Series PBR8860FL is a heavy-duty mortise lock trim pack engineered for commercial doors requiring ANSI/BHMA Grade 1 security and durability. Ideal for high-traffic entrances, this stainless steel lock resists vandalism and delivers reliable performance in demanding applications, with field-reversible handing for flexible installation.
This trim pack suits standard 1-3/4" doors and accommodates up to 3-1/4" thick doors by special order. Includes a 6-pin keyed-random cylinder with two keys and a reversible curved-lip strike. As an authorized Yale dealer, E.D. Locks provides expert guidance on keying options, finishes, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Mechanism: Stainless steel with reinforced deadbolt
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" to order)
- Cylinder: Brass, 6-pin keyed-random, includes two keys (7-pin available)
- Strike: 1-1/4" curved lip for 1-3/4" door (reversible)
- Handing: Field reversible
- Finishes: Available in 17 finishes
- Warranty: 10 years mechanical
- Windstorm: Certified (subject to local codes)
