Description

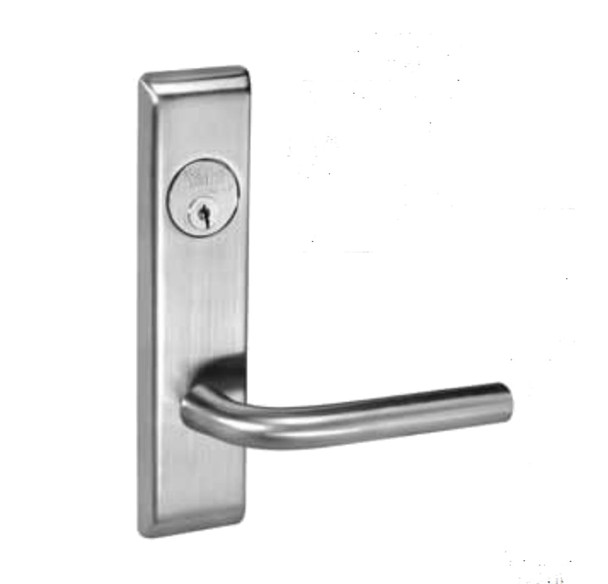

The Yale 8800 Series mortise lock is a heavy-duty commercial lock designed for doors requiring ANSI/BHMA Grade 1 security and durability. With a reinforced stainless steel deadbolt, vandal-resistant trim, and UL/cUL fire rating up to 3 hours, it solves security and compliance needs in office buildings, schools, hospitals, and other institutional settings.
This mortise lock fits standard 1-3/4" doors and features field-reversible handing for flexible installation. The 626 finish is one of 17 available options to match your decor. As an authorized Yale dealer, E.D. Locks provides expert guidance on keying, handing, and compatibility. Contact our team at sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating, adjusts flat to 1/8" standard bevel
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available to order)
- Handing: Field reversible
- Strike: 1-1/4" curved lip for 1-3/4" door standard (other lengths to special order)
- Finish: 626 (17 finishes available)
- Warranty: 10 year mechanical
