Description

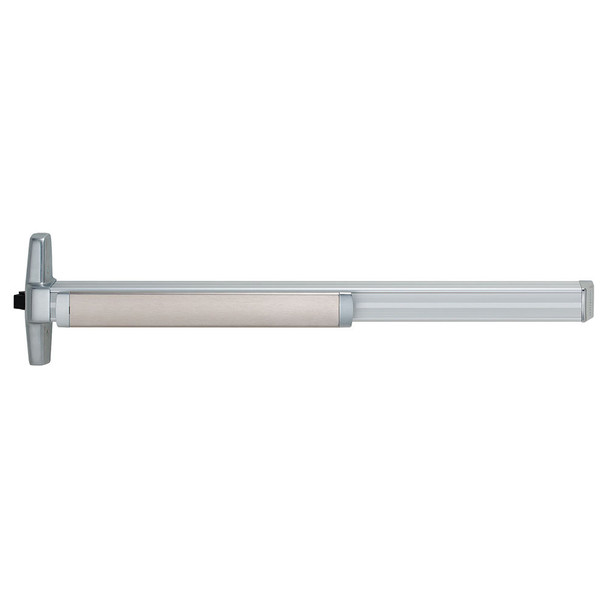

The Von Duprin QEL33AEO 3 26D is a Grade 1 panic exit device designed for single and double doors with mullion support. Built to ANSI A156.3 2014 standards and UL listed, it provides reliable emergency egress for high-traffic commercial facilities, schools, and healthcare settings where code-compliant panic hardware is essential.
This rim-mounted device fits door sizes 24 to 36 inches and features a deadlocking 3/4-inch latch bolt with hex key dogging standard. Choose from electric monitoring, latch retraction, and alarm options to match your security needs. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and compliance.
Specifications
- Brand: Von Duprin
- Model: QEL33AEO 3 26D
- Grade: ANSI A156.3 2014 Grade 1
- UL Listed: Yes
- Device Lengths: 24 to 36 inches (711-914 mm)
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Center Case Dimensions: 8 3/16 x 2 13/32 x 1 9/16 inches (208 x 62 x 40 mm)
- Device Centerline from Floor: 39 13/16 inches (1011 mm)
- Pushbar Projection Neutral: 3 13/16 inches (97 mm)
- Pushbar Projection Depressed: 3 1/16 inches (78 mm)
- Dogging: Hex key standard; CD and LD options available
- Standard Strike: 1439 Dull Black
