Description

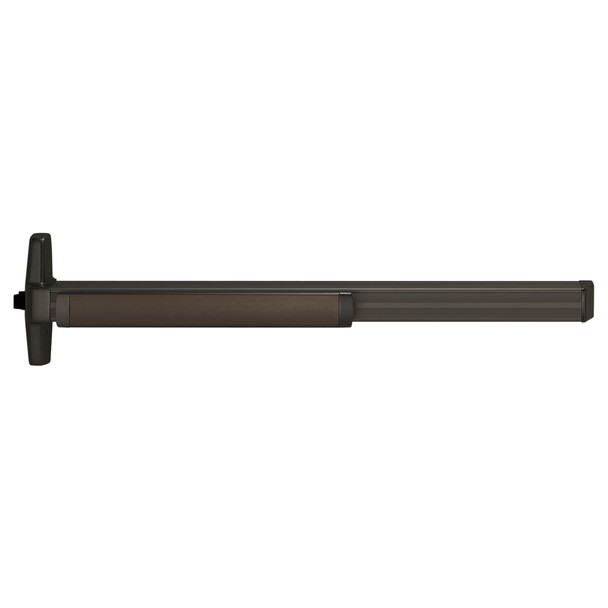

The Von Duprin QEL33ANL is a Grade 1 panic exit device designed for single and double doors with mullion. This UL-listed hardware meets ANSI A156.3 2014 standards and solves the critical need for reliable emergency egress on commercial doors, protecting occupants and ensuring code compliance.
The QEL33ANL is non-handed and fits door sizes from 2'4" to 4' with a deadlocking 3/4" latch bolt. Available options include electric latch retraction, monitor switches, and alarm kits. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and function.
Specifications
- Model: QEL33ANL 3 313 LHR
- Grade: ANSI A156.3 2014 Grade 1
- UL Listed for panic exit hardware
- Compatible with: Single and double doors with mullion
- Door sizes: 2'4" to 4' (711mm to 1219mm)
- Device centerline from finished floor: 39 13/16" (1011mm)
- Center case dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Pushbar projection neutral: 3 13/16" (97mm)
- Pushbar projection depressed: 3 1/16" (78mm)
- Strike: 1439 Dull Black
- Dogging feature: Hex key dogging standard
- Fasteners: Sex bolts 1 3/4" to 2 1/4" (44mm to 57mm) for wood and metal doors
- Non-handed except with SS signal switch option
- Available options: Electric latch retraction, monitor switches, alarm kit, cylinder dogging, pneumatic latch retraction, glass bead kit
