Description

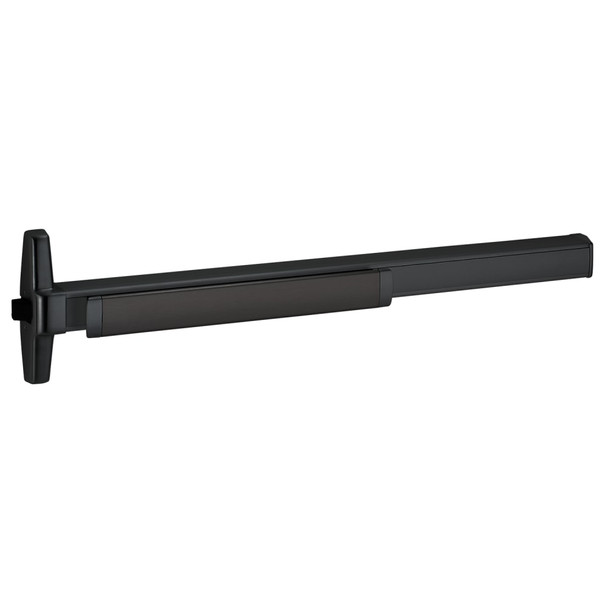

The Von Duprin QEL35AEO-F is a UL-listed rim exit device designed for fire-rated single and double doors with mullions. Built to ANSI A156.3-2014 Grade 1 standards, this exit-only device features a smooth mechanism case and deadlocking latch bolt, ideal for commercial buildings, hospitals, and facilities requiring reliable emergency egress hardware.
Installation fits doors 2'10" to 4' wide with device centerline 39 13/16" from finished floor. The QEL35AEO-F includes fasteners for wood and metal doors and is non-handed (except with signal switch options). Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting trim options, keying, and ensuring full code compliance on your door opening.
Specifications
- Brand: Von Duprin
- Model: QEL35AEO-F 3/315
- UL Listed: Fire Exit Hardware
- ANSI Grade: A156.3-2014 Grade 1
- Function: Exit Only (EO)
- Case Type: Smooth mechanism case
- Device Length: 2'10" to 3' (711-914mm)
- Door Width: 2'10" to 4' (864-1219mm)
- Device Centerline: 39 13/16" from floor (1011mm)
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57x57mm)
- Pushbar Projection (Neutral): 3 13/16" (97mm)
- Pushbar Projection (Depressed): 3 1/16" (78mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners: Includes SNB for wood and metal doors
- Handed: Non-handed (except with signal switch)
