Description

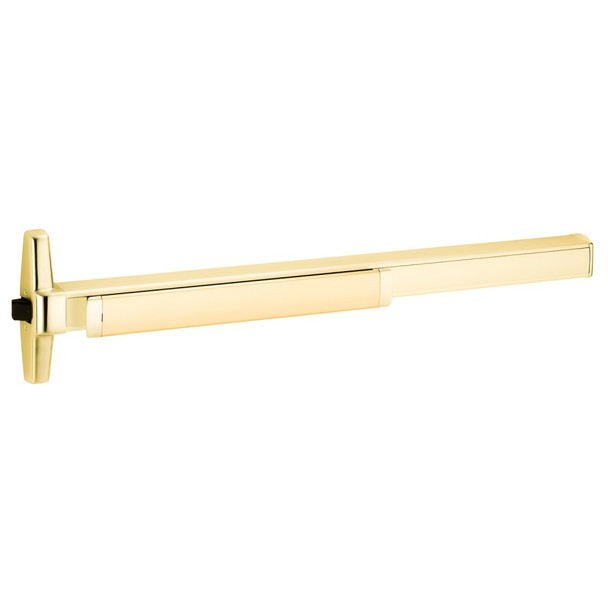

The Von Duprin QEL35ANL 3 is a Grade 1 panic exit device designed for single and double doors with mullions. UL listed and ANSI A156.3-2014 compliant, this rim-mounted hardware delivers reliable emergency egress for commercial buildings, schools, hospitals, and other high-traffic facilities where code-compliant panic hardware is essential.
This left-hand reverse (LHR) model fits doors 4'10" to 4'0" tall with standard centerline mounting at 39 13/16" from finished floor. The deadlocking latch bolt provides 3/4" throw security. Compatible with wood and metal doors using included sex bolts. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying options, trim selection, and expert installation guidance from an authorized Von Duprin dealer.
Specifications
- Brand: Von Duprin
- Model: QEL35ANL 3 US3 LHR
- Grade: ANSI A156.3-2014 Grade 1
- Device Type: Rim Exit Device (Non-Handed)
- Suitable for: Single and double doors with mullion
- Device Length: 33" to 36" (711mm to 914mm)
- Door Size: 4'10" to 4'0" (864mm to 1219mm)
- Mount Height: 39 13/16" (1011mm) from finished floor
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Pushbar Projection (Neutral): 3 13/16" (97mm)
- Pushbar Projection (Depressed): 3 1/16" (78mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Case Type: Smooth Mechanism Case (Model 35A)
- UL Listed: Yes
- Door Compatibility: Wood and metal doors
- Fasteners: #425 SNB for end case, #325 SNB for EO devices (included)
