Description

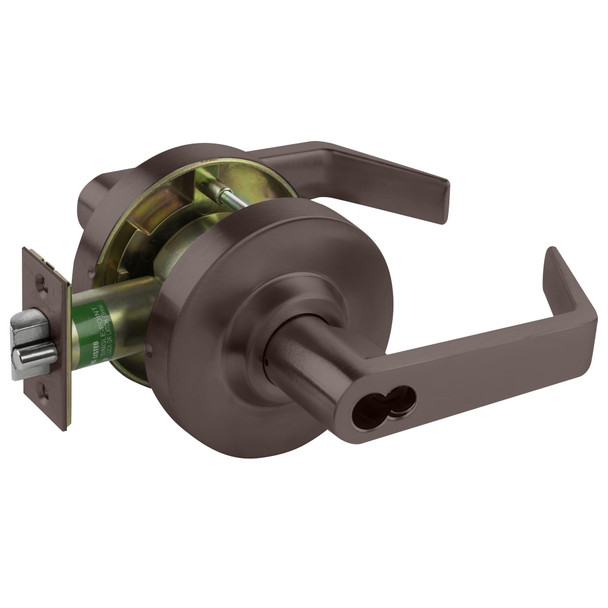

The Arrow QL81 is a Grade 1 cylindrical lockset designed for commercial doors requiring heavy-duty security and abuse resistance. Its freewheeling lever design protects against forced entry, while the two-screw installation enables quick setup. Ideal for replacing or upgrading locks in offices, retail spaces, and institutional buildings.
This lockset fits standard 2-1/8 inch bore doors with 1-3/8 to 1-3/4 inch thickness and 2-3/4 inch backset. It accepts Arrow AR and Schlage CS keyways with a solid brass 6-pin cylinder. As an authorized Arrow dealer, E.D. Locks provides expert guidance on keying, handing, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for free technical support and to verify your door specifications.
Specifications
- Grade: 1
- Door Bore: 2-1/8 inch
- Backset: 2-3/4 inch
- Door Thickness: 1-3/8 to 1-3/4 inch
- Latch: Stainless steel, 1/2 inch throw, UL listed
- Latch Front: 1-1/8 x 2-1/4 inch
- Lever Length: 4-3/4 inch
- Rose Diameter: 3-11/32 inch
- Total Projection: 2-17/32 inch
- Strike: 4-7/8 inch ANSI
- Cylinder: Solid brass, 6-pin
- Keyways: Arrow AR, Schlage CS
- Handing: Non-handed
- Warranty: 10-year mechanical
- Included: 2 brass keys
- Packaging: 6 per case
