Description

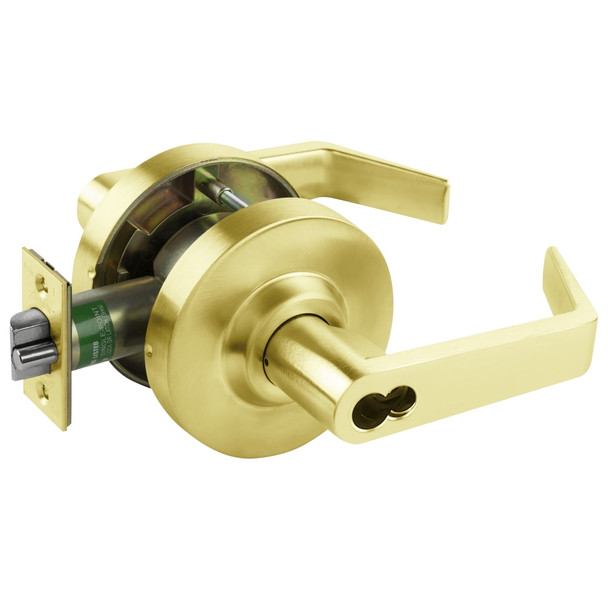

The Arrow QL87-SR-03-IC is a Grade 1 cylindrical lockset built for commercial doors requiring dependable security and durability. Its freewheeling lever resists abuse, making it ideal for high-traffic entries, hallways, and general office spaces where standard locks wear quickly. Two-screw installation speeds setup on new or replacement applications.
This lockset fits standard 1-3/8" to 1-3/4" doors with a 2-1/8" bore and 2-3/4" backset. It accepts Arrow AR and Schlage CS keyways and comes with a 10-year mechanical warranty. Contact our specialists at sales@edlocks.com or 1-877-207-6067 for keying options, handing verification, and installation support.
Specifications
- Grade: 1
- Bore Size: 2-1/8" (53.97mm)
- Backset: 2-3/4" (69.85mm)
- Door Thickness: 1-3/8" to 1-3/4" (34.93mm to 44.45mm)
- Latch: Stainless Steel, 1/2" (12.7mm) throw, UL Listed guarded latchbolt
- Latch Front: 1-1/8" x 2-1/4"
- Lever Length: 4-3/4" (120.65mm)
- Rose Diameter: 3-11/32" (84.8mm) wrought brass
- Total Projection: 2-17/32" (64.5mm)
- Cylinder: Solid brass, 6 pin
- Keyway: Arrow AR and Schlage CS
- Keys: 2 brass keys
- Strike: 4-7/8" ANSI (123.83mm)
- Handing: Non-handed
- Warranty: 10 years
- Packaging: 6 per case
