Description

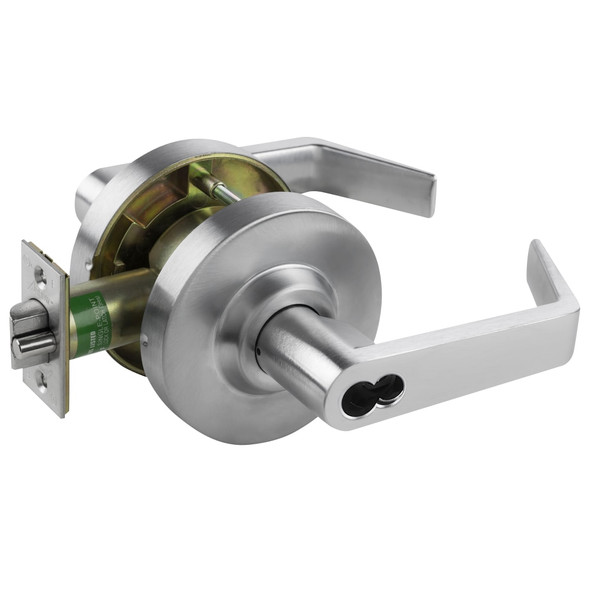

The Arrow QL97-SR-613E-IC is a Grade 1 cylindrical lockset designed for commercial door security upgrades and replacements. Its freewheeling lever resists abuse, while the two-screw installation enables quick setup. Ideal for facilities managing multiple doors across offices, retail, or institutional spaces.
This lockset fits standard 2-1/8" bores and accommodates doors 1-3/8" to 1-3/4" thick with a 2-3/4" backset. It accepts both Arrow AR and Schlage CS keyways for flexible keying. As an authorized Arrow dealer, E.D. Locks provides expert configuration assistance at sales@edlocks.com or 1-877-207-6067, plus a 10-year mechanical warranty for peace of mind.
Specifications
- Brand: Arrow
- Model: QL97-SR-613E-IC
- Grade: 1
- Door Bore: 2-1/8" (53.97mm)
- Backset: 2-3/4" (69.85mm)
- Door Thickness: 1-3/8" to 1-3/4" (34.93mm to 44.45mm)
- Latch: Stainless steel, 1/2" (12.7mm) throw, UL listed, guarded
- Latch Front: 1-1/8" x 2-1/4"
- Lever: Pressure cast zinc, 4-3/4" (120.65mm) length
- Rose: Wrought brass, 3-11/32" (84.8mm) diameter
- Total Projection: 2-17/32" (64.5mm)
- Cylinder: Solid brass, 6 pin
- Keyways: Arrow AR, Schlage CS
- Handing: Non-handed
- Warranty: 10 years mechanical
- Keys Included: 2 brass keys
- Strike: 4-7/8" ANSI (123.83mm)
- Packaging: 6 per case
