Description

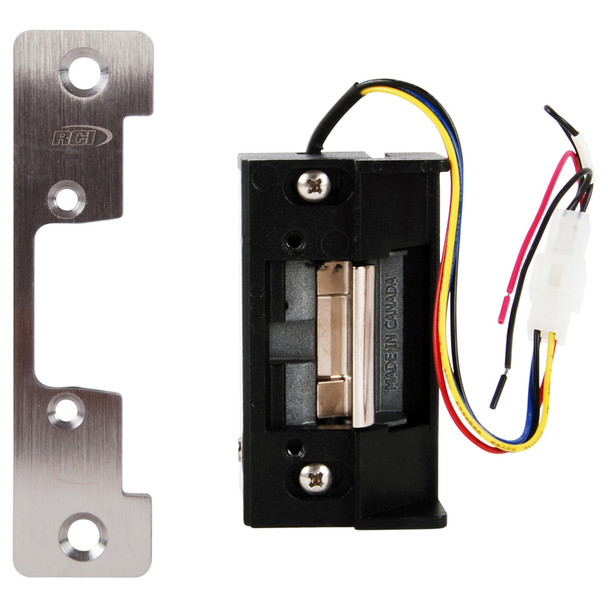

RCI's L6504 is a versatile 6 Series electric strike engineered for ANSI round corner centerline latches with low profile design. This all-in-one unit solves access control challenges in commercial, retail, healthcare, and educational facilities by offering field-selectable fail-safe or fail-secure modes without tools.
The strike accommodates 1/2" or 5/8" latch projection and fits aluminum frames with 1-3/16" or 1-1/16" depth. It accepts multiple voltage inputs (12-24VAC or 12-24VDC), includes modular wire connectors for quick installation, and features 1/4" horizontal adjustment. As an authorized RCI dealer, E.D. Locks provides expert guidance on configuration and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Type: Low Profile
- Latch Projection: 1/2" or 5/8"
- Application: Aluminum Frames
- Dimensions: 1-1/4"W x 4-7/8"H
- Frame Depth: 1-3/16" (S) or 1-1/16" (L)
- Mode: Field Selectable Fail Locked / Fail Unlocked
- Voltage: 12-24VAC or 12-24VDC
- Finish: 32D Brushed Stainless Steel
- Static Strength: UL Listed 1500 lbs
- Faceplate: Stainless Steel, Non-Handed
- Features: Horizontal Adjustment (1/4"), Plug-In Wire Connectors, Trim Plate Included
