Description

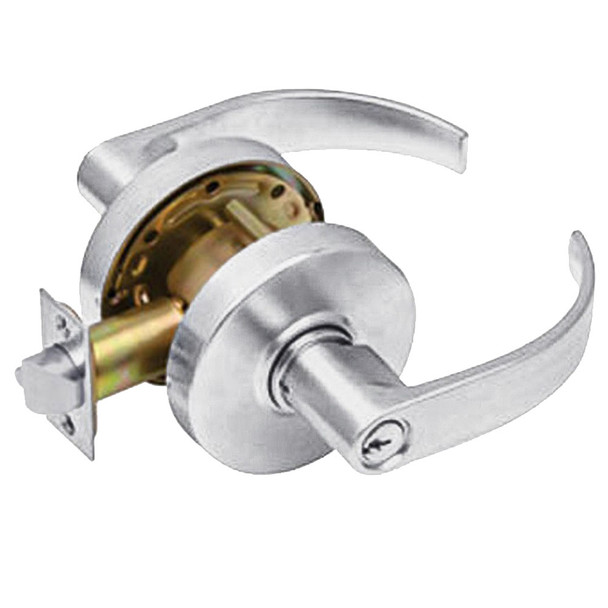

The Arrow RL12-BRR-26 is a heavy-duty cylindrical lockset designed for multi-family housing and light commercial applications. This economical lockset features removable through bolts, cold rolled steel construction with zinc dichromate finish for corrosion resistance, and a brass 1/2 inch throw latchbolt. It solves security needs for apartment buildings, offices and institutional facilities requiring reliable, keyed entry control.
Installation requires a standard 2-1/8 inch bore and fits doors 1-3/8 to 1-3/4 inches thick with backset options of 2-3/8 or 2-3/4 inches. The lockset ships with 2 brass keys and comes with your choice of Arrow A keyway or Schlage CS keyway. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing selection and installation support.
Specifications
- Brand: Arrow
- Model: RL12-BRR-26
- Type: Cylindrical Lockset
- Lever: Pressure cast zinc, 4-3/4 inch length
- Rose: Wrought brass, 3-3/8 inch diameter
- Cylinder: Solid brass, 6-pin
- Latchbolt: Brass, 1/2 inch throw, UL Listed, guarded
- Latch Front: 1 inch x 2-1/4 inch (2-3/8 inch backset) or 1-1/8 inch x 2-1/4 inch (2-3/4 inch backset)
- Door Bore: 2-1/8 inch standard
- Door Thickness: 1-3/8 to 1-3/4 inches
- Backset: 2-3/8 inch or 2-3/4 inch
- Total Projection: 2-1/2 inches from face of door
- Strike Options: 4-7/8 inch ANSI, 2-3/4 inch T strike, or 2-1/4 inch full lip strike
- Keyway: Arrow A standard; Schlage CS and competitive keyways available
- Keys Included: 2 brass keys
- Handing: Non-handed
- Thru-bolts: Removable standard
- Packaging: 10 per case
- Warranty: Five Year Mechanical
