Description

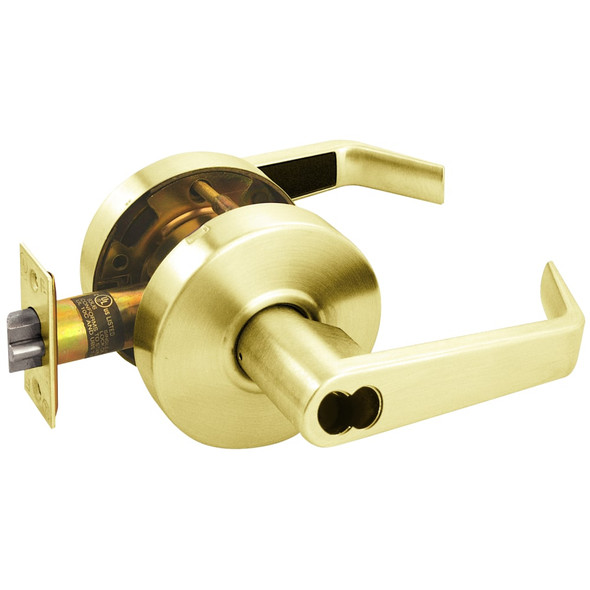

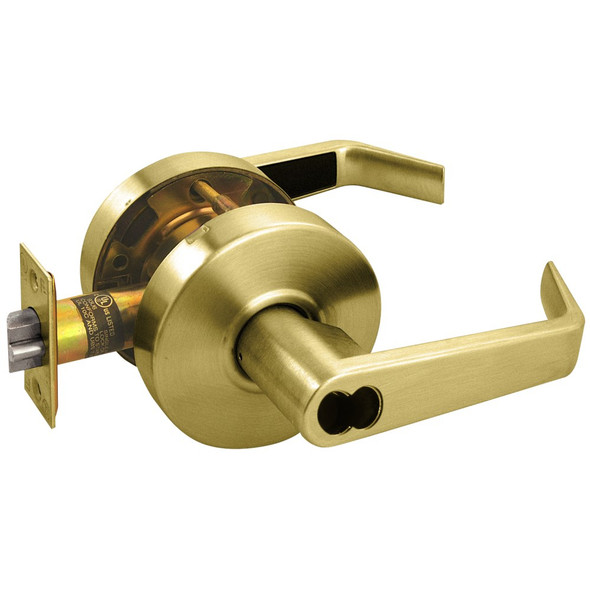

The Arrow RL12-SR-BSP-IC is a cylindrical lockset designed for multi-family housing and light commercial applications. This economical lock features a brass latch with 1/2 inch throw, UL-listed guarded latchbolt, and cold rolled steel construction with zinc dichromate finish for corrosion resistance. Removable through bolts and pressure cast zinc levers offer flexibility and durability for your entry door security needs.
Compatible with standard 2 1/8 inch bore doors measuring 1 3/8 to 1 3/4 inches thick, this non-handed lock accommodates 2 3/8 or 2 3/4 inch backsets. It comes keyed to Arrow A keyway standard with two brass keys. As an authorized Arrow dealer, E.D. Locks provides expert installation guidance and free support at sales@edlocks.com or 1-877-207-6067 to ensure proper fit and function.
Specifications
- Brand: Arrow
- Model: RL12-SR-BSP-IC
- Type: Cylindrical Lockset
- Bore Size: 2 1/8 inch
- Door Thickness: 1 3/8 to 1 3/4 inches
- Backset Options: 2 3/8 inch or 2 3/4 inch
- Latch: Brass, 1/2 inch throw, UL Listed
- Latch Front: 1 x 2 1/4 inch (2 3/8 inch backset) or 1 1/8 x 2 1/4 inch (2 3/4 inch backset)
- Trim: RL Levers, pressure cast zinc, 4 3/4 inch length
- Roses: Wrought brass, 3 3/8 inch diameter
- Total Projection: 2 1/2 inches
- Strike Options: 4 7/8 inch ANSI, 2 3/4 inch T, or 2 1/4 inch full lip
- Cylinder: Solid brass, 6 pin
- Keyway: Arrow A standard (Schlage CS and competitive keyways available)
- Keys Included: 2 brass keys
- Handing: Non-handed
- Material: Cold rolled steel with zinc dichromate finish
- Through-bolts: Removable standard
- Warranty: Five year mechanical
- Packaging: 10 per case
