Description
The Rofu 1430-05 is a fail-secure electric strike designed for commercial door access control on mortise locksets from Schlage, Sargent, and Yale (except 7800 series). It solves the problem of upgrading existing high-security installations with electronic entry while maintaining security during power loss, ideal for new construction and retrofits.

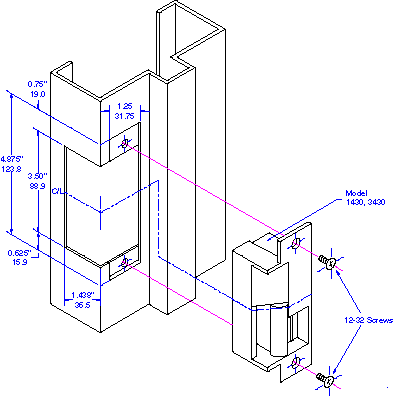

This strike fits standard hollow metal or aluminum jambs and installs into ANSI/BHMA A 156.5 cutouts. It is compatible with most commercial mortise locks and features corrosion-resistant housing rated for 1.7 million pounds of tamper strength. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for handed configuration assistance and professional guidance on your specific installation requirements.
Specifications
- Power: 12VDC/12VAC
- Function: Fail Secure
- Standard: ANSI/BHMA A 156.5

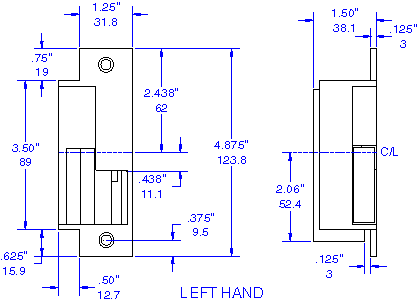

- Cutout Size: 1 1/4" x 4 7/8"
- Frame Type: Hollow Metal or Aluminum Jamb
- Housing: Corrosion-Resistant
- Tamper Strength: 1700 pounds
- Latch Opening: Below Center Line (BCL), 3/8" below center line
- Cycle Test Rating: 500,000 cycles
- Keeper Depth: 5/8"
- Strike Depth: 1.50" overall
- Handed: Specify Left or Right Hand
- Finish: US32 Stainless Steel
- Warranty: 36 Months
- Made in the USA
- PoE Friendly
