Rofu 1400 Series 1450-08 24VDC/VAC Fail Sec High Security CL (Centerline) Electric Strike


$289.94 - $309.94
SKU:
1450-08
In Stock & Ready To Ship!
Current Stock:Only left:

Description


Rofu 1400 Series 1450-08 24VDC/VAC Fail Sec High Security CL (Centerline) Electric Strike

Applications

  • Electric Strikes for use with Mortise and Cylindrical locksets
  • For Commercial and Residential, New and Retrofit Uses

Specifications

  • ANSI/BHMA A 156.5  (1 1/4″ x 4 7/8″) fit cutout Specification A 115.1 (with slight jamb modification)
  • Stainless Steel – Made in USA
  • Frame Type – Hollow Metal or Aluminum Jamb
  • Corrosion – Resistant Housing and Moving Parts
  • Tamper Strength Test – 1700 pounds
  • Center Line (CL) (this is a non handed unit and can ship with either a LH or RH solenoid)
  • Cycle Test of 500,000 cycles
  • Fully Tamperproof Horizontal Adjustment to compensate for misalignment and warpage (this works great when there is unexpected back pressure)
  • Keeper depth of 5/8″, maximum latch projection possible with 1/8″ of door/frame clearance 3/4″
  • Strike depth of 1.50″ overall
  • Limited Warranty – 36 Months (3 years)
  • PoE Friendly!
  • Made in the USA

Available Models

  • 1450-05 = 12VDC/12VAC Fail Secure
  • 1450-08 = 24VDC/VAC Fail Secure

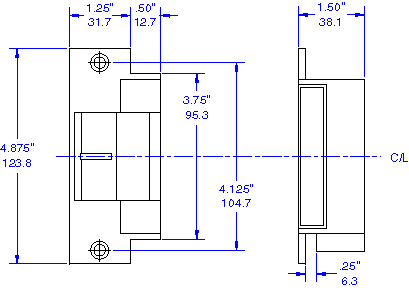

Rofu 1450 Line Art

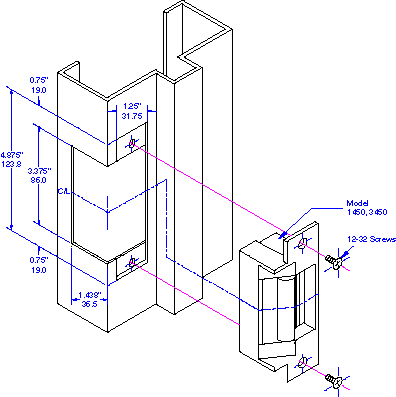

Rofu 1450 Hollow Metal Frame Installation
