Description
The Rofu 1500 Series 1508-01 is a fail-secure electric strike designed for both mortise and cylindrical locksets in commercial and residential applications. It solves access control challenges in new construction and retrofit projects, supporting flexible power options from 3-6VDC or 8-16VAC.
This non-handed unit installs on hollow metal, aluminum, or wood frames and features corrosion-resistant housing rated for 500,000 cycles and 1,000 pounds of tamper strength. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility with your specific lockset and installation requirements, plus access to authorized dealer support.
Specifications
- Voltage: 3-6VDC / 8-16VAC
- Fail Mode: Fail Secure
- Finish: Aluminum (US28)

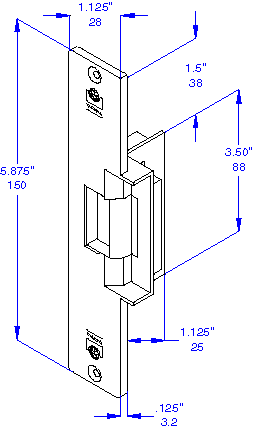

- Faceplate Dimensions: 1 1/8" x 5 7/8"
- Frame Type: Hollow Metal, Aluminum or Wood
- Strike Depth: 1.43" overall
- Keeper Depth: 5/8"
- Maximum Latch Projection: 3/4" with 1/8" door frame clearance
- Tamper Strength Test: 1000 pounds
- Cycle Test: 500,000 cycles
- Warranty: 36 Months (3 Years)
- PoE Friendly
