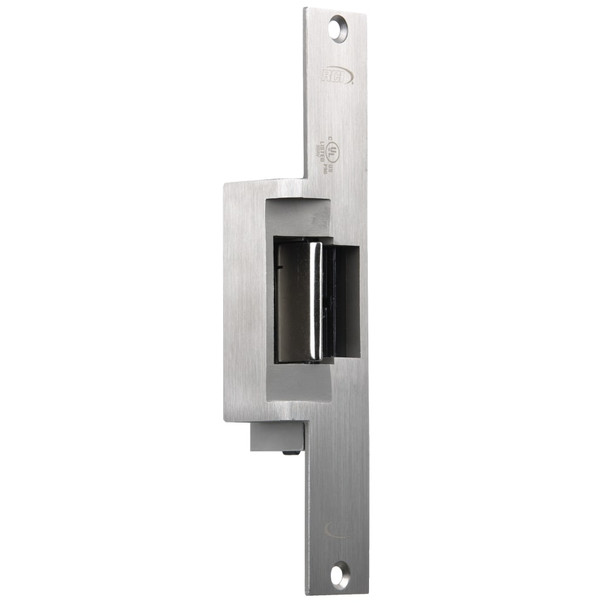

Rutherford Controls RCI F1119-05-32D Fire-Labeled Heavy-Duty Centerline Latch Entry Electric Strike

Installation Instructions

F1 Series Product Sheets

The strength and durability of our F1 Series Electric Strikes make them ideal for Fire Rated or heavy-duty applications.

The F1 Series Electric Strikes is designed with a unique built-in anti-vibration feature, a saddle mounted housing and a tamper resistant "Pry-Guard" for increased strength and tamper-resistance.

STANDARD FEATURES

• Tamper-resistant "Pry-Guard" concealed behind the door frame increases strength and prevents manipulation by tool attack
• Saddle-Mount" housing design for enhanced strength and durability

• Accommodates 1/2" (12.7mm), 5/8" (15.9mm), or 3/4" (19.1mm) latch projection (Pullman design not included)
• Horizontal adjustment (up to 1/4" or 6.4 mm) relieves side-load pressure, ensuring proper latch alignment
• Unique "Anti-Vibration" design prevents manipulation by vibration
• Heavy-duty solid cast stainless steel housing design (32D)
• Crossed wires are not a problem, as coil is not polarity sensitive
• Energy efficient coil design
• Internally mounted solenoid for easier installation
• Non-handed for right or left-hand doors
• Standard mounting tabs, shims and fasteners included
• Fire labeled - UL 10C (1-1/2 hr.)
• UL 1034 Burglary-resistant (highest level): Static Strength: 1500 lbs., Dynamic Strength: 70 ft. lbs.; Endurance rating: 250,000 cycles
• Meets ANSI/BHMA A156.31 Grade 1
• Fits frame cut-out for Folger Adam 712 (F1114) and 310-2 (F1119) and VonDuprin 6211(ANSI) (F1114) and 6215/6226 (F1119)
• Fail-locked (fail secure) mode standard

Note: Fail-unlocked (fail-safe) strikes are not permitted on fire labeled doors.

Warranty
5 Year Limited Warranty

Applications:

• Commercial Centers
• Industrial Buildings
• Educational Facilities
• Retail Outlets
• Health Care Facilities
• Office Complexes

Specifications:

Model                       Mode                               Voltage     Current  Duty                                  Sound            Amps          Ohms

Certification

	Fire labeled - UL 10C (1-1/2 hr.)
	UL 1034 Burglary-resistant (highest level): Static Strength: 1500 lbs., Dynamic Strength: 70 ft. lbs.; Endurance rating: 250,000 cycle

Meets ANSI/BHMA A156.31 Grade 1
