Description

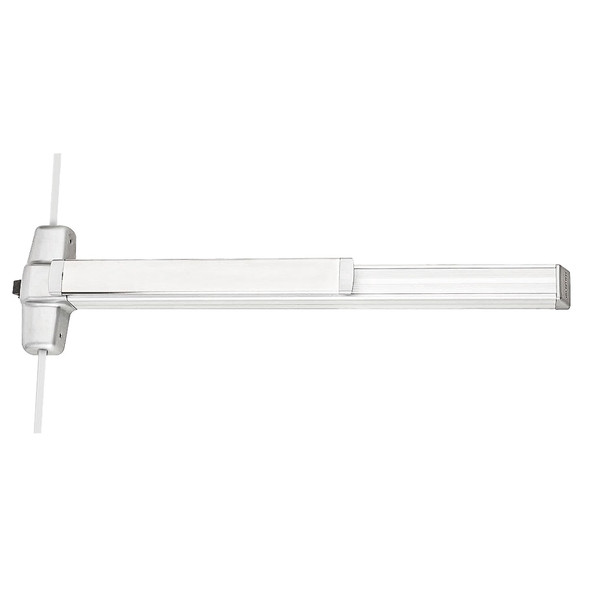

The Von Duprin RX3327AEO is a UL-listed panic exit device designed for single and double doors up to 4 feet wide. This Grade 1, ANSI A156.3-2008 certified hardware provides reliable emergency egress with a grooved mechanism case and deadlocking anti-friction latches. Ideal for commercial buildings, healthcare facilities, and any space requiring code-compliant life safety hardware.
The RX3327AEO accommodates standard 7-foot doors with included vertical rods; extension rods support taller openings up to 10 feet. Installation requires wood or metal door preparation with provided sex bolts. As an authorized Von Duprin dealer, E.D. Locks offers expert guidance on keying, trim options, and signal switch configurations. Contact sales@edlocks.com or call 1-877-207-6067 for application support and fast delivery.
Specifications
- Model: RX3327AEO 3 US26
- Grade: ANSI A156.3-2008 Grade 1
- UL Listed for Panic Exit Hardware
- Latch Configuration: 3-point (top, bottom, center deadlocking)
- Latch Bolt Throw: 5/8 inch (16mm)
- Door Width Range: 2 feet 4 inches to 4 feet (660mm to 1219mm)
- Standard Vertical Rod Length: 7 feet (2134mm)
- Top Rod Length: 34 15/16 inches (887mm)
- Bottom Rod Length: 31 1/4 inches (794mm)
- Center Case Dimensions: 8 13/16 inch x 2 13/32 inch x 1 9/16 inch (208mm x 62mm x 40mm)
- Mechanism Case Dimensions: 2 1/4 inch x 2 1/4 inch (57mm x 57mm)
- Pushbar Projection (Neutral): 3 13/16 inches (97mm)
- Pushbar Projection (Depressed): 3 1/16 inches (78mm)
- Device Centerline from Finished Floor: 39 13/16 inches (1006mm)
- Door Undercut: 1/4 inch (7mm)
- Vertical Rod Material: 1/2 inch square tubing
- Finish: US26 (Polished Chrome)
- Non-handed (except with signal switch option)
- Extension Rods Available: 1 foot or 3 feet for doors over 7 feet
- One-Piece Rod Available: for 8 foot to 10 foot doors
- Sex Bolts Included: #425 SNB for end case, #325 SNB for EO device and latches
- Compatible Doors: Wood and metal, single and double
