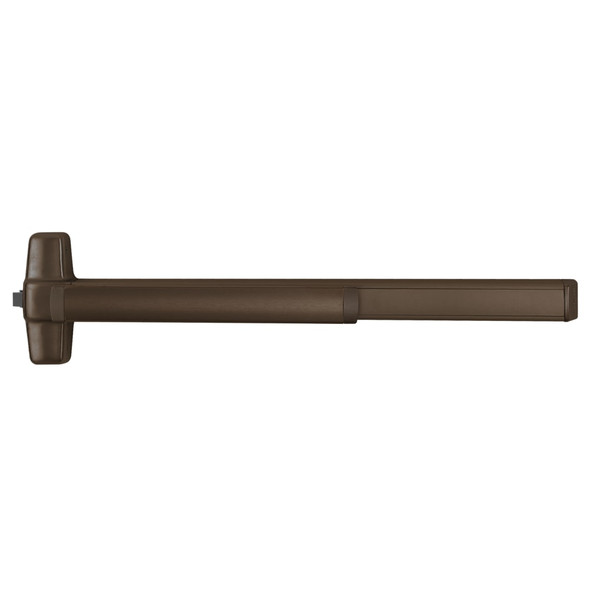

RXEL35AEO 3 US10B Rim Exit Devices

33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

• Device lengths: 3' 2' 4" to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm)
• Door size: Device centerline from finished floor 39 13/16" (1011 mm) 39 11/16" (1008 mm) with Mullion
• Center case dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar Depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3 /4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes 13 /4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)

Von Duprin Finishes Chart
