Description

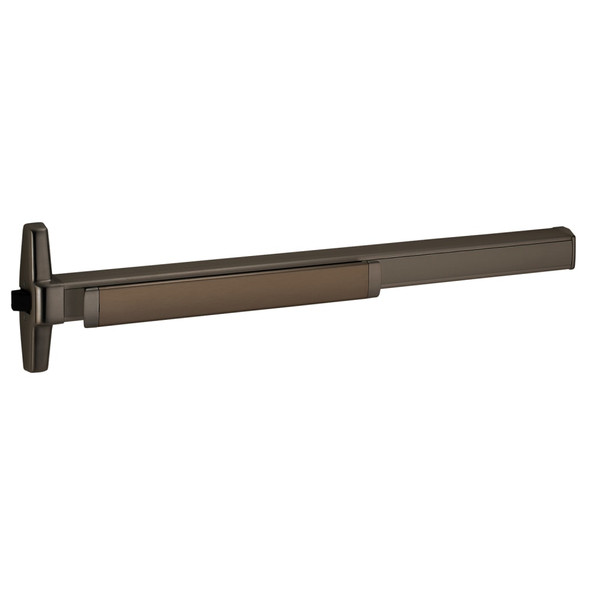

The Von Duprin RXQEL35AEO 3 643E is a UL-listed rim exit device designed for single and double doors with mullion. Grade 1 per ANSI A156.3-2014, this panic hardware solves emergency egress requirements for commercial facilities, schools, hospitals, and multi-tenant buildings where code-compliant rapid exit is essential.
Compatible with doors 2 feet 10 inches to 4 feet wide and 3 feet 2 inches to 3 feet 4 inches tall, the device installs on the interior face with a deadlocking 3/4-inch latch bolt. Non-handed operation (except with signal switch option) simplifies inventory. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for application assistance.
Specifications
- Brand: Von Duprin
- Model: RXQEL35AEO 3 643E
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed: Yes
- Device Lengths: 3 feet 2 inches to 3 feet 4 inches (711mm to 914mm)
- Compatible Door Width: 2 feet 10 inches to 4 feet (864mm to 1219mm)
- Centerline Height from Floor: 39 13/16 inches (1011mm) or 39 11/16 inches (1008mm) with mullion
- Center Case Dimensions: 8 3/16 inches x 1 9/16 inches x 2 13/32 inches (208mm x 40mm x 62mm)
- Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
- Latch Bolt: Deadlocking, 3/4 inch (19mm) throw
- Pushbar Projection (Neutral): 3 13/16 inches (97mm)
- Pushbar Projection (Depressed): 3 1/16 inches (78mm)
- Non-Handed: Yes (except with signal switch option)
- Fasteners: SNB 1 3/4 inch to 2 1/4 inch for wood and metal doors
