Description

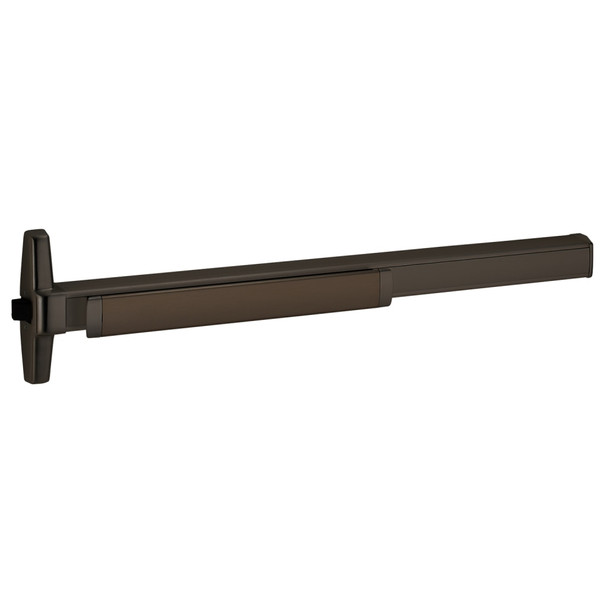

The Von Duprin RXQ EL35AEO 4 313 is a UL-listed rim exit device designed for single and double doors with mullions. Grade 1 rated to ANSI A156.3-2014, this panic hardware solution is ideal for commercial facilities requiring reliable emergency egress. The smooth mechanism case provides durability and aesthetic appeal.
Compatible with doors 2'10" to 4' wide, this non-handed device (except with signal switch option) installs on wood and metal doors using included sex bolts. E.D. Locks is an authorized Von Duprin dealer; contact our experts at sales@edlocks.com or 1-877-207-6067 for installation guidance, keying options, and outside trim selection to ensure code compliance.
Specifications
- Brand: Von Duprin
- Model: RXQ EL35AEO 4 313
- Grade: ANSI A156.3-2014 Grade 1
- Door Width Compatibility: 2'10" to 4' (864 mm to 1219 mm)
- Device Length: 3'2" to 3'4" (711 mm to 914 mm)
- Centerline Height from Floor: 39 13/16" (1011 mm)
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208 mm x 40 mm x 62 mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
- Pushbar Projection Neutral: 3 13/16" (97 mm)
- Pushbar Projection Depressed: 3 1/16" (78 mm)
- Latch Bolt: Deadlocking, 3/4" (19 mm) throw
- Fasteners: 1 3/4" to 2 1/4" wood and metal door sex bolts included
- Case Finish: Smooth (Model 35A)
- UL Listed: Yes
- Non-Handed: Yes (except with signal switch option)
