Description

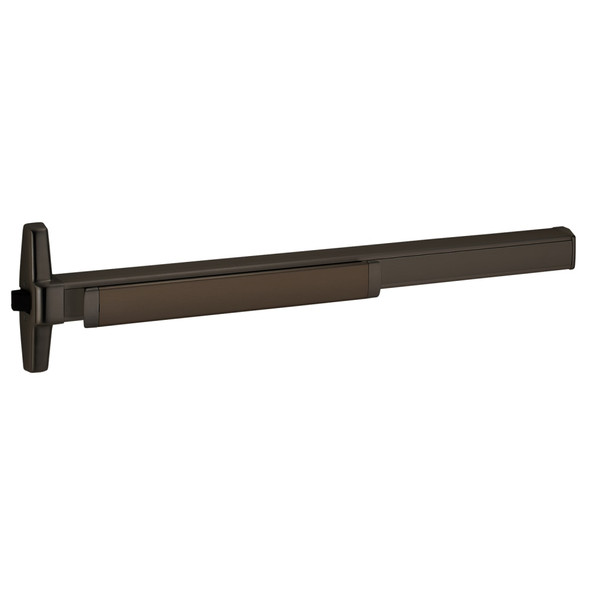

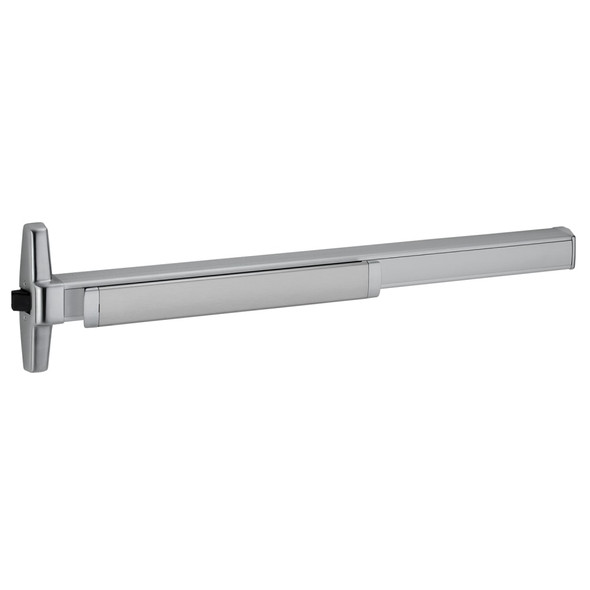

The Von Duprin RXQEL35AEO 4 is a Grade 1 UL-listed rim exit device designed for single and double doors with or without mullions. Built to ANSI A156.3-2014 standards, this panic hardware provides reliable emergency egress for commercial facilities, schools, hospitals and other high-traffic buildings where life safety is critical.
Compatible with standard door frames 2'10" to 4' wide and 3'2" to 3'4" tall, this non-handed device (except with signal switch option) installs on the interior face of the door. The 35A features a smooth mechanism case for a refined appearance. As an authorized Von Duprin dealer, E.D. Locks offers expert selection guidance and fast shipping. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility confirmation and installation support.
Specifications
- Brand: Von Duprin
- Model: RXQEL35AEO 4 US28
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed: Yes, panic exit hardware
- Finish: US28 (Aluminum, Anodized
- Compatible Door Width: 2'10" to 4' (864 mm to 1219 mm)
- Compatible Device Length: 3'2" to 3'4" (711 mm to 914 mm)
- Mounting Height (centerline): 39 13/16" (1011 mm) standard, 39 11/16" (1008 mm) with mullion
- Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208 mm x 40 mm x 62 mm)
- Mechanism Case: 2 1/4" x 2 1/4" (57 mm x 57 mm)
- Pushbar Projection (Neutral): 3 13/16" (97 mm)
- Pushbar Projection (Depressed): 3 1/16" (78 mm)
- Latch Bolt: Deadlocking, 3/4" (19 mm) throw
- Non-handed (except with signal switch option)
- Includes sex bolts for 1 3/4" to 2 1/4" wood and metal doors
