Description

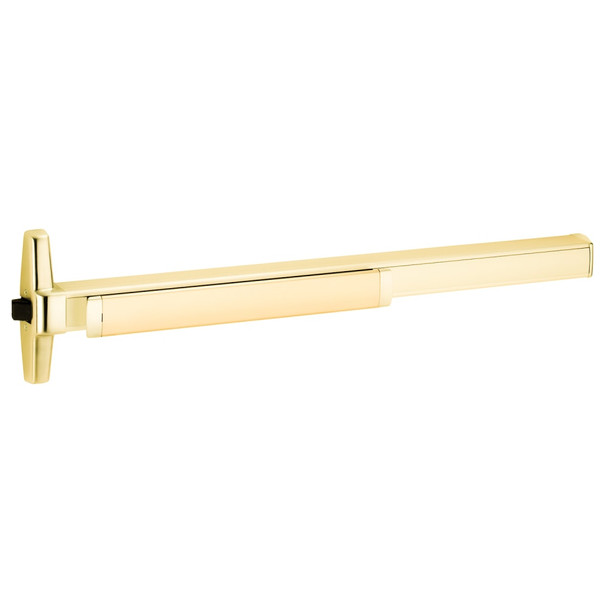

The Von Duprin RXQEL35AEO-F 3 US3 is a UL-listed rim exit device designed for single and double fire-rated doors with mullion. Grade 1 ANSI A156.3 certified, this non-handed device features a smooth mechanism case and deadlocking latch bolt, ideal for facilities requiring compliant emergency egress on institutional and commercial openings.
Compatible with doors 2'10" to 4' wide and positioned 39 13/16" from finished floor. Fasteners and sex bolts for wood and metal doors are included. As an authorized Von Duprin dealer, E.D. Locks provides expert support to ensure proper installation and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 with questions.
Specifications
- Model: RXQEL35AEO-F 3 US3
- Grade: ANSI A156.3 2014 Grade 1
- UL Listed: Fire Exit Hardware
- Device Length: 2'4" to 3' (711mm to 914mm)
- Door Width: 2'10" to 4' (864mm to 1219mm)
- Center Height: 39 13/16" from finished floor (1011mm)
- Center Height with Mullion: 39 11/16" (1008mm)
- Center Case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism Case: 2 1/4" x 2 1/4" (57mm x 57mm)
- Pushbar Neutral Projection: 3 13/16" (97mm)
- Pushbar Depressed Projection: 3 1/16" (78mm)
- Latch Bolt: Deadlocking, 3/4" throw (19mm)
- Fasteners: Includes 1 3/4" to 2 1/4" wood and metal door bolts
- Handed: Non-handed (except with SS signal switch option)
