Description

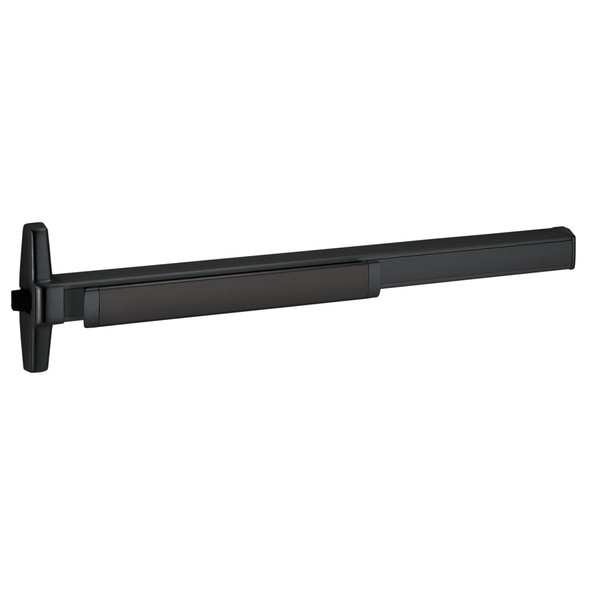

The Von Duprin RXQ EL35ANL-OP-F is a UL-listed rim exit device designed for fire-rated single and double doors with mullions. Built to ANSI A156.3 2014 Grade 1 standards, this non-handed device provides reliable emergency egress for institutional and commercial facilities where code-compliant panic hardware is essential.
This device fits door openings from 2'10" to 4' wide and mounts at 39 13/16" from finished floor. Compatible with wood and metal doors using included fasteners. For proper selection of finish, outside trim, and function options, contact our security experts at sales@edlocks.com or 1-877-207-6067 for personalized guidance and fast shipping on authorized Von Duprin products.
Specifications
- Brand: Von Duprin
- Model: RXQ EL35ANL-OP-F
- UL Listed for Fire Exit Hardware
- Grade: ANSI A156.3 2014 Grade 1
- Device Length: 2'4" to 3'
- Door Size: 2'10" to 4'
- Device Centerline: 39 13/16" from finished floor
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4"
- Pushbar Neutral Projection: 3 13/16"
- Pushbar Depressed Projection: 3 1/16"
- Latch Bolt: Deadlocking, 3/4" throw
- Fasteners: Wood and metal door compatible
- Case Style: Smooth mechanism case
- Non-handed (except with signal switch option)
- Suitable for mullion doors
