Description

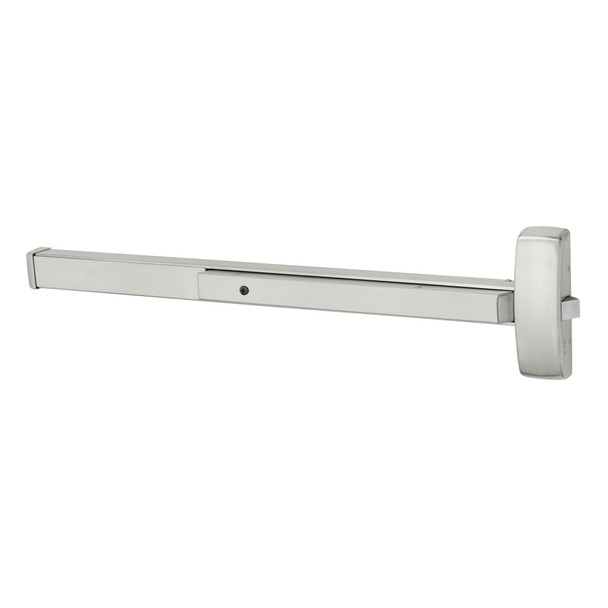

The Sargent 8800 Series is a reversible rim exit device built for standard-width stile applications on wood and metal doors up to 1-3/4 inches thick. This Grade 1 ANSI A156.3 device delivers single-point latching for single and double door setups, solving security and reliability needs in commercial and institutional buildings with durable, quiet operation.
The 32-inch model (G Rail) fits doors 43 to 48 inches wide with no cutting required on 48-inch doors. UL Fire and Panic listed for code compliance. As an authorized Sargent dealer, E.D. Locks provides expert sizing guidance and installation support at sales@edlocks.com or 1-877-207-6067 to ensure correct fit and performance.
Specifications
- Series: 8800
- Model: 1943-8874G
- Rail Type: G Rail
- Door Width Range: 43 to 48 inches (110cm to 122cm)
- No-Cut Width: 48 inches
- Door Thickness: 1-3/4 inches (44mm)
- Door Types: Wood or metal
- Latching: Single point
- Applications: Single and double doors with mullions
- ANSI Rating: A156.3 Grade 1
- Certifications: UL Fire and Panic listed
