Description

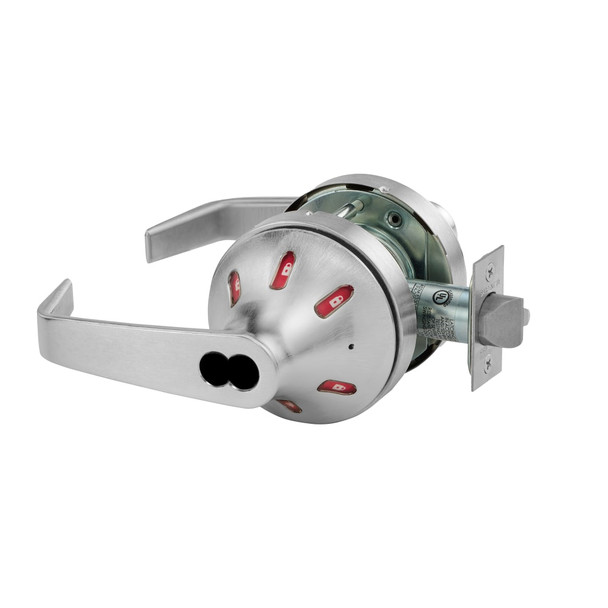

The Sargent 10X-Line is a Grade 1 bored lever lock engineered for high-security, high-traffic facilities. It exceeds ANSI/BHMA standards by up to 20 times, resisting extreme leverage, impact, and vandalism. Ideal for commercial buildings, schools, hospitals, and government facilities requiring maximum reliability and security.
This non-handed lock accommodates standard 1 3/4" to 2" doors with multiple backset options and works with Degree, Signature, and KESO key systems. Compatible latchbolts allow upgrades from 10-Line locks. For proper handing, backset selection, and keying configuration, contact E.D. Locks' security experts at sales@edlocks.com or 1-877-207-6067 to ensure optimal installation and system integration.
Specifications
- Door Prep: ANSI/BHMA A156.115
- Door Thickness: 1-3/4" (44 mm) standard; adjusts to 2" (51 mm); 1-3/8" (35 mm) with adapter option
- Minimum Stile: 4-1/2" (114 mm)
- Handing: Non-handed
- Backset Options: 2-3/4" (70 mm) with 1-1/8" front (standard); 2-3/8" (60 mm) with 1" front; 3-3/4" (95 mm) with 1-1/8" front; 5" (127 mm) with 1-1/8" front
- Latchbolt: Stainless steel, 1/2" (13 mm) throw; optional brass 3/4" throw
- Mechanical Functions: 26 available
- Finishes: 14 options with multiple lever designs
- Resists 3,100+ in-lb locked lever torque (2.6x ANSI/BHMA)
- Resists 1,600 lbs offset lever pull (8x ANSI/BHMA)
- 100 lb latch preload (2x ANSI/BHMA)
- Withstands 100+ vertical impacts (20x ANSI/BHMA)
- Optional Microshield antimicrobial coating available
