Description

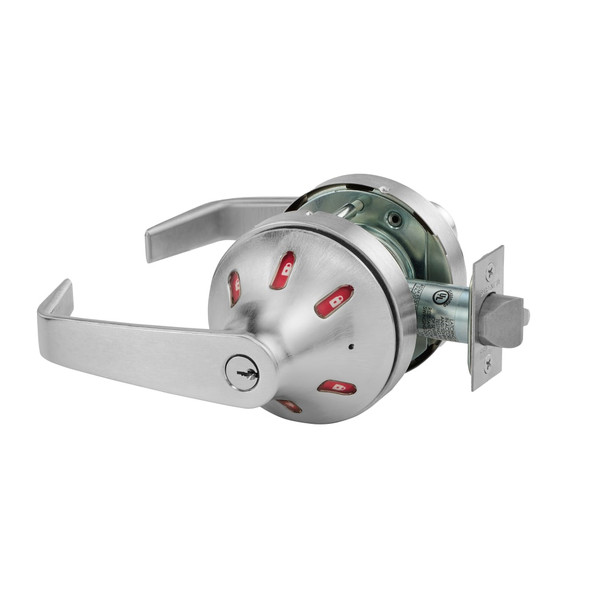

The Sargent V30-10XG44 is a Grade 1 bored lever lock engineered for high-security applications in commercial facilities. Tested far beyond ANSI/BHMA standards, it resists forced entry, vandalism, and heavy-traffic wear while maintaining smooth operation in demanding environments where standard locks fall short.
This lock accommodates door thicknesses from 1-3/8" to 2-1/4" with adjustable backset options and works with multiple key systems including Degree, Signature, and KESO. As an authorized E.D. Locks dealer, we provide expert guidance on handing, finish selection, and installation support. Contact sales@edlocks.com or 1-877-207-6067 to ensure proper specification for your facility.
Specifications
- Door Thickness: 1-3/4" (44mm) standard; adjustable to 2" (51mm) or 1-3/8" (35mm) with options
- Minimum Stile: 4-1/2" (114mm)
- Backset: 2-3/4" (70mm) with 1-1/8" front standard; 2-3/8", 3-3/4", or 5" options available
- Latchbolt: Stainless steel 1/2" (13mm) throw; optional brass 3/4" throw
- Handing: Non-handed
- Door Prep: ANSI/BHMA A156.115
- Functions: 26 mechanical functions
- Finishes: Available in 14 finishes
- Compatibility: Degree, Signature, KESO and other security key systems; all cylinder formats supported
- Optional: Microshield antimicrobial coating
