Description

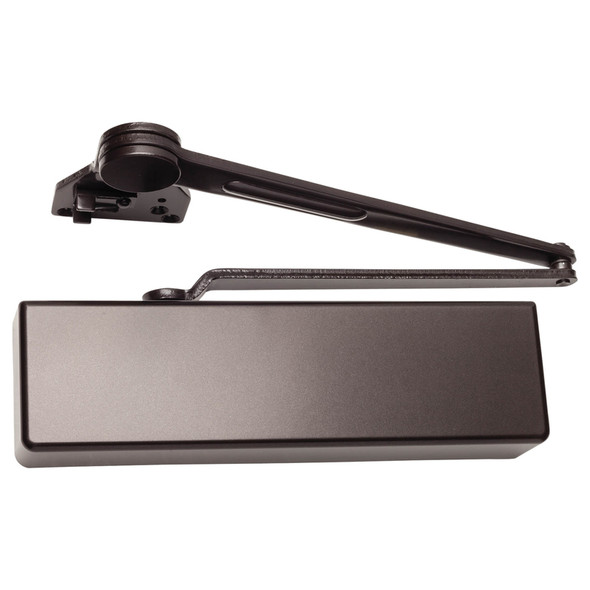

The Falcon SC71A DS AL is a heavy-duty surface-mounted door closer engineered for high-traffic commercial and institutional settings. Its single-piece cast aluminum body with heat-treated forged steel piston delivers reliable, smooth operation in schools, offices, retail shops, restaurants, and apartment complexes. Non-handed design works on left or right swinging doors.
This closer is UL listed, ANSI/BHMA A156.4 Grade 1 certified, and ADA/ANSI A117.1 compliant. Installation fits standard openings with adjustable spring sizes (1-6) and separate controls for general speed, latch speed, and backcheck. As an authorized Falcon dealer, we offer expert pre-sale consultation and full warranty support. Contact sales@edlocks.com or call 1-877-207-6067 for sizing and mounting guidance.
Specifications
- Piston diameter: 1-1/2 inches
- Body material: Single-piece cast aluminum
- Pinion: Heat-treated forged steel, double heat-treated
- Fluid: UL 10C approved
- Design: Non-handed (universal)
- Adjustable spring sizes: 1-6
- Controls: Separate general speed, latch speed, backcheck
- Certifications: UL listed, ANSI/BHMA A156.4 Grade 1, UL 10C, UBC 7-2 (1997) fire test
- ADA/Accessibility: Compliant with ADA and ANSI A117.1
- Warranty: 10 years
