Description

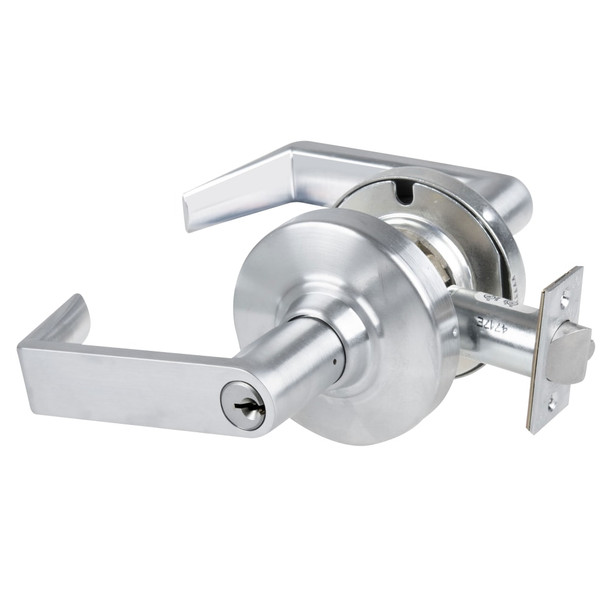

The Schlage ND78PD RHO 626 is a Grade 1 cylindrical lever lock engineered for commercial facilities requiring durable, reliable access control. This mechanical lock significantly exceeds ANSI/BHMA A156.2 standards for cycle life, torque, and impact resistance, making it ideal for healthcare, education, government, and retail environments where high-traffic doors demand consistent performance.
The ND series supports 31 mechanical functions, standard ANSI 161 door prep for retrofit and new construction, and multiple keying options including SFIC and FSIC formats. As an authorized Schlage dealer, E.D. Locks provides expert configuration assistance and ongoing support. Contact our team at sales@edlocks.com or 1-877-207-6067 to verify compatibility with your specific door thickness and function requirements.
Specifications
- Grade: ANSI/BHMA Grade 1
- Function: 31 mechanical options available
- Lever Design: Rhodes (RHO)
- Finish: 626 (Satin Chrome)
- Chassis Material: Modular zinc and steel, corrosion-plated
- Door Thickness Standard: 1-5/8" to 2-1/8"
- Door Thickness Optional: 1-3/8" to 6"
- Backset Standard: 2-3/4"
- Backset Optional: 2-3/8", 3-3/4", 7-3/4"
- Cylinder Formats: Standard, SFIC, FSIC
- Non-Schlage Core Support: 10 formats
