Description

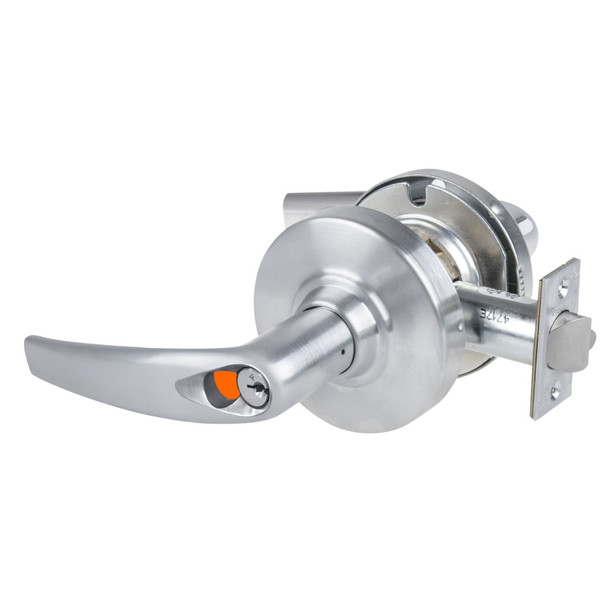

The Schlage ND80HD is a Grade 1 cylindrical lever lock built for high-traffic commercial spaces. Featuring the Athens lever design and satin chrome finish, it significantly exceeds ANSI/BHMA A156.2 requirements for durability, cycle life, and abuse resistance. Ideal for healthcare, education, government, retail and office applications where reliability matters.
This lock fits standard ANSI 161 door prep (1-5/8" to 2-1/8" thickness) and supports multiple cylinder formats including standard, SFIC and FSIC. It offers 31 mechanical functions and compatible with Schlage key systems. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying options, installation guidance, and ongoing technical support from an authorized Schlage dealer.
Specifications
- Exceeds ANSI/BHMA A156.2 Grade 1 cylindrical lock requirements
- Lever: Athens (ATH), pressure cast zinc
- Finish: 626 (Satin Chrome)
- Door thickness: Standard 1-5/8" to 2-1/8" (Optional 1-3/8" to 6")
- Backset: Standard 2 3/4" (Optional 2 3/8", 3 3/4", 7 3/4")
- Cylinder formats: Standard, SFIC, FSIC, plus 10 non-Schlage cores
- 31 mechanical functions available
- Chassis: Modular zinc and steel, plated for corrosion protection
