Description

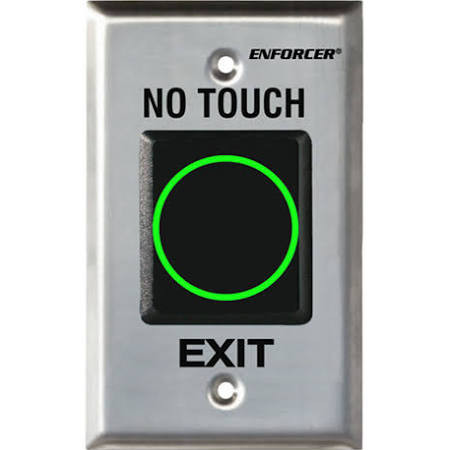

The ENFORCER "No Touch" Indoors Request-To-Exit Plate uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch, this plate is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. For indoor use.
- No Touch -- just wave a hand in front of sensor.
- Sensing range up to 4" (10cm). (Range for SD-927PWCQ is up to 2" (5 cm))
- Reliable IR technology senses motion.
- No touch reduces the risk of cross-contamination.
- Stainless steel or white plastic single gang plate.
- 3A relay, triggers min. 0.5 sec. or as long as hand is near the sensor.
- LED illuminated sensor area for easy identification.
- LED changes color to show the relay is triggered.
- Quick-connect screwless terminal block.
| Model # | SD-927PKC-NxQ | SD-927PWCQ | |
| Current Draw | 40mA@12VDC | ||
| Operating Voltage | 12VDC | ||
| Relay Type | Form "C" NO/NC/COM | ||
| Switching capacity | 3A@24VDC | ||
| Response Time | 10mS | ||
| LEDs | Standby | Green | Red |
| Triggered | Red | Green | |
| Output Time | 0.5S or as long as unit is triggered | ||
| Range | Up to 4" (10cm) | Up to 2" (5cm) | |
| Operating Temperature | -4°~131° F (-20°~55° C) | ||
| Weight | 3oz (85g) | 2.5oz (70g) | |
| Dimensions | 41/2"x23/4"x15/16" (115x70x33.5mm) | ||
