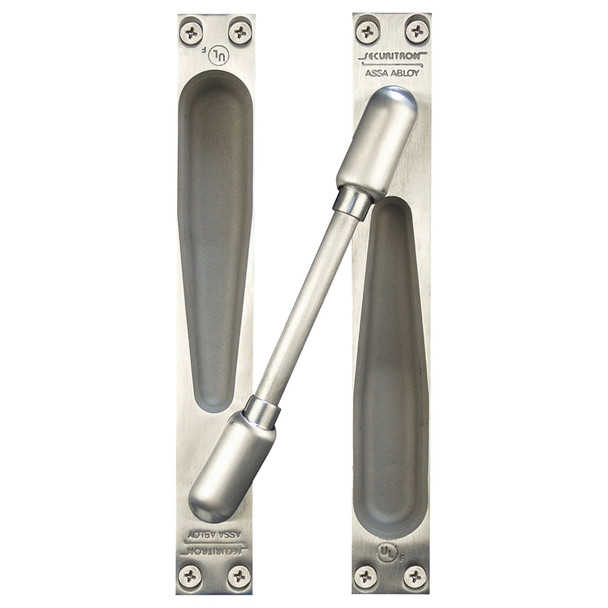

Securitron EL-CEPT Concealed Electrical Power Transfer With Electrolynx

MSRP: $513.00
You save $171.85
In Stock & Ready To Ship!
Current Stock:Only left:



Securitron CEPT-10 Concealed Electrical Power Transfer

The Concealed Electrical Power Transfer CEPT unit is designed to provide a secure multiple wire power and/or data transfer between a door frame and door. The unit mounts directly between the frame and door along the hinged edge and is available in three multi-wire configurations. The CEPT is non-handed, allows mechanical (hinged) movement of the door and is totally concealed when the door is fully closed. This manual provides the information required to successfully install a CEPT to a standard hinged door opening.

Product Features

  • Mortises into the edges of the door and frame
  • Tamper resistant. No exposed openings prevents foreign objects from reaching the wires or jamming the device
  • All metal construction including backboxes - no plastic
  • 10 wire configuration includes 2-18 gauge wires for higher current devices
  • Available with CAT-5E and ElectroLynx compatible connectors
  • Four architectural finishes: US32, US04, US10 and US10B
  • Installs above 2nd hinge
  • 7/8" knockouts on back boxes accommodate EMF-type fittings
  • Tested to 1,000,000 cycles
  • Will only function with butt hinges - up to 6"
  • Will not work on center-hung or balanced doors
  • Will work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout

Specification Data


 Door Angle Range

 </=5" Butt Hinge

 0-180 Degrees

 5-1/2" Butt Hinge

 0-130 Degrees

 6" Butt Hinge

 0-110 Degrees
