Description

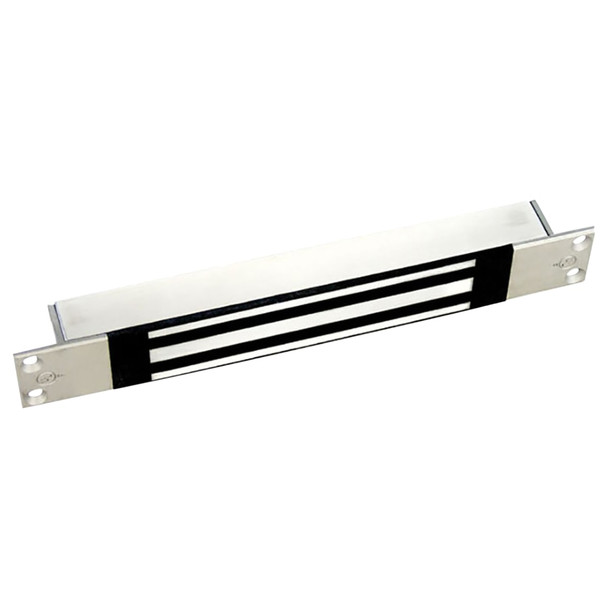

Securitron M34R 500 lbs. Holding Force Recessed Magnalock
- Maglock Model 34R, 500lbs, Dual Voltage, Recessed.
- 12/24vdc.
- Stainless Steel.
500 lbs. holding force Magnalock with automatic dual voltage for mounting in sliding doors. This results in an aesthetically appealing finished appearance. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
Product Features
- Patented instant release circuit - no residual magnetism
- Recessed for aesthetically appealing finish
- Fully sealed electronics - tamper proof and weatherproof
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 500 lbs. [227 kg]
- Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
M34R Installation Instructions
