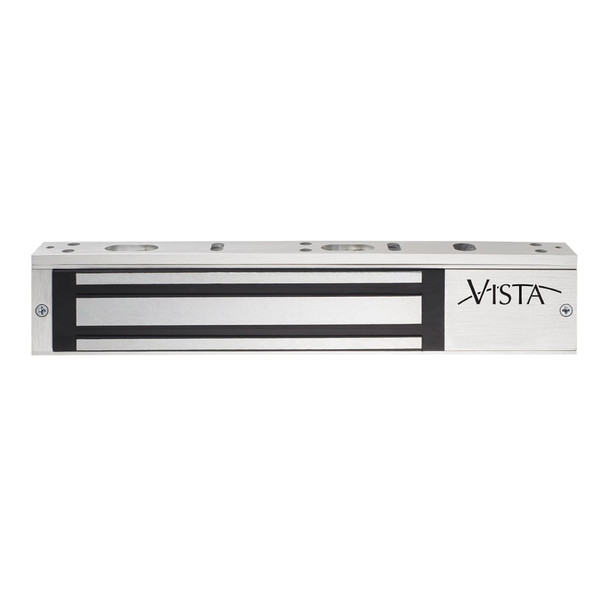

Securitron V2M600 12/24VDC Vista 600lbs Holding Force Maglock

Securitron V2M600 12/24VDC Vista 600lbs Holding Force Maglock

Securitron V2M600 12/24VDC Vista 600lbs Holding Force Maglock
$209.00 $148.95
(You save $60.05)


Securitron V2M600 12/24VDC Vista 600lbs Holding Force Maglock

600 lbs. holding force maglock with field selectable dual voltage. Suitable for interior doors where physical assault is not expected. Indoor use only.

Product Features

  • Individually tested for holding force
  • Easy Mount Adjustable Bracket
  • Instant release (no residual magnetism)
  • Optional Bond Sensor and Door Position Switch available
  • Wire Access Chamber with Plug-In connectors
  • Dual voltage 12/24VDC
  • Brushed Aluminum Finish
  • UL Listed
  • VistaCare One-year hassle-free, no fault warranty

Specification Data

  • Holding Force: 600 lbs [272 kg]
  • Voltage: 12 or 24VDC (field selectable)
  • Current Draw: 520mA at 12VDC, 260mA at 24VDC
  • Operating Temperature: +32 to +110F [0 to +43C]
  • 9-3/8" [238mm] x 1-57/64" [48mm] x 1-3/64" [27mm]

Models

 Part #

 Description

 VM600

 Vista Magnetic Lock - 600lbs, Dual Voltage

 VM600DB

 VM600 Maglock, Dual Voltage, Door Position Switch, Bond Sensor

pdficon.png Securitron VM600 Specifications

pdficon.png Securitron VM300, VM600, VM1200 Installation Instructions

pdficon.png Securitron VM600 Mounting Template
