SEM7810-517 695 LCN Electromagnetic Door Holders

The Sentronic SEM7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the doors. A choice of floor, recessed wall or surface wall mounted magnets are available.

SEM 7820 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Floor-mounted

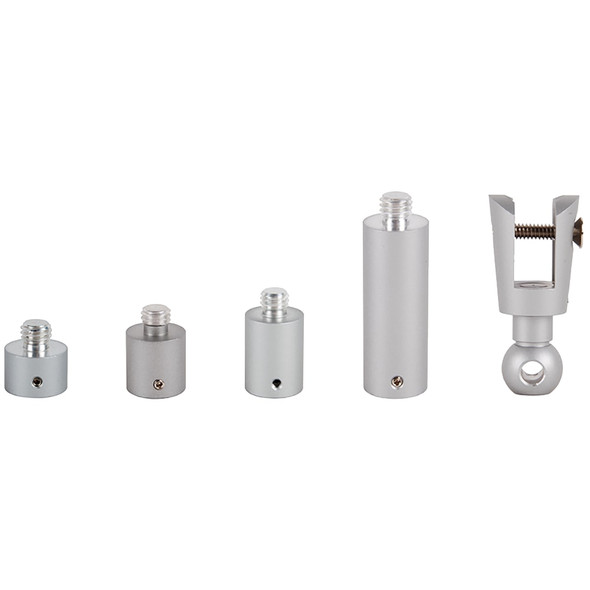

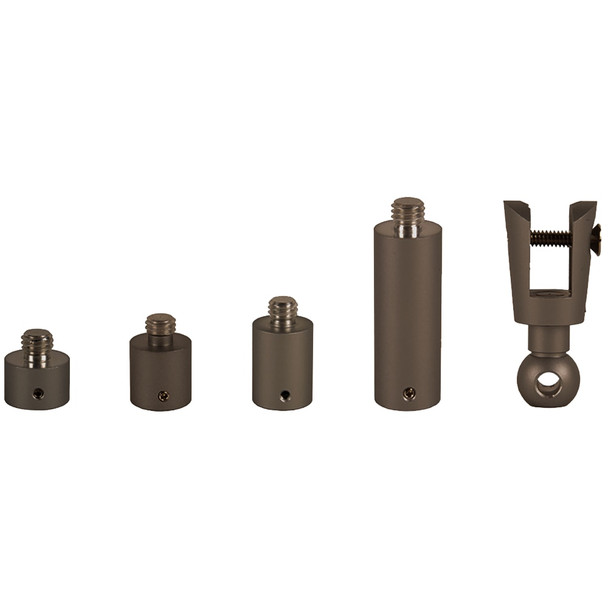

• Now available armature extensions from LCN
• SEM 7820 magnets are shipped with die cast housing, cover, armature(s) and WMS screw pack
• UL listed for smoke barrier or labeled fire doors
• SEM 7820 available in Aluminum and Dark Bronze finishes

SEM 7830 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Surface wall-mounted
• Now available armature extensions from LCN
• SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack
• Suitable for use in pocket door installations
• UL listed for smoke barrier or labeled fire doors
• SEM 7830 available in Aluminum and Dark Bronze finishes

SEM 7840 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Low profile recessed wall-mounted
• Now available armature extensions from LCN
• SEM 7840 magnets are shipped with die cast housing, cover, armature and WMS screw pack
• Suitable for use in pocket door installations
• UL listed for smoke barrier or labeled fire doors
• SEM 7840 available in Aluminum and Dark Bronze finishes

SEM 7850 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Standard profile recessed wall-mounted
• Now available armature extensions from LCN
• SEM 7850 magnets are shipped with die cast housing, cover, armature and WMS screw pack
• Suitable for use in pocket door installations
• UL listed for smoke barrier or labeled fire doors
• SEM 7850 available in Aluminum and Dark Bronze finishes
