Description

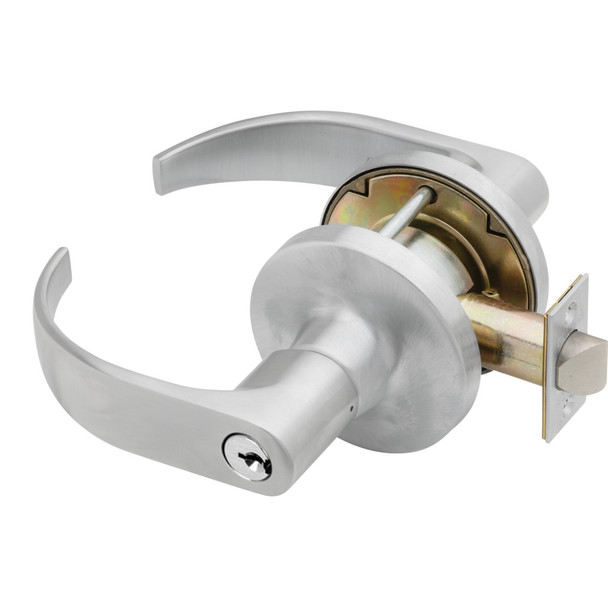

The Falcon T351CP6D is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and high-abuse institutional applications. It exceeds ANSI/BHMA Grade 1 testing requirements and features a compression spring design, brass cylinder housing, and stainless steel springs for durability and corrosion resistance. Ideal for schools, government buildings, and commercial facilities demanding reliable, long-lasting security hardware.
This lock fits standard 1-3/4" to 2-1/8" doors with a 2-3/4" backset and accepts any manufacturer's removable cylinder for simple retrofitting and re-keying. The non-handed design suits any door orientation. As an authorized Falcon dealer, E.D. Locks offers expert assistance with compatibility questions, custom pinning options, and backset variations. Contact sales@edlocks.com or 1-877-207-6067 for guidance tailored to your building's needs.
Specifications
- Grade: ANSI/BHMA Grade 1
- Handing: Non-handed
- Door thickness: 1-3/4" to 2-1/8" standard (adapters available for thinner doors)
- Backset: 2-3/4" standard (2-3/8" available; 5" backset link available)
- Bolt projection: 9/16" standard (3/4" available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: "G" standard on conventional cylinders, "A" on interchangeable core
- Cylinder housing: Solid brass, removable for re-keying
- Springs: Stainless steel body, phosphor bronze cylinder
- Trim: Wrought brass roses, pressure cast levers
- Latch faceplate: 2-1/4" x 1-1/8" with square corners, UL listed
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Keys: Two nickel silver keys furnished standard
- Interchangeable core options: Small format (SFIC) and large format available
