Description

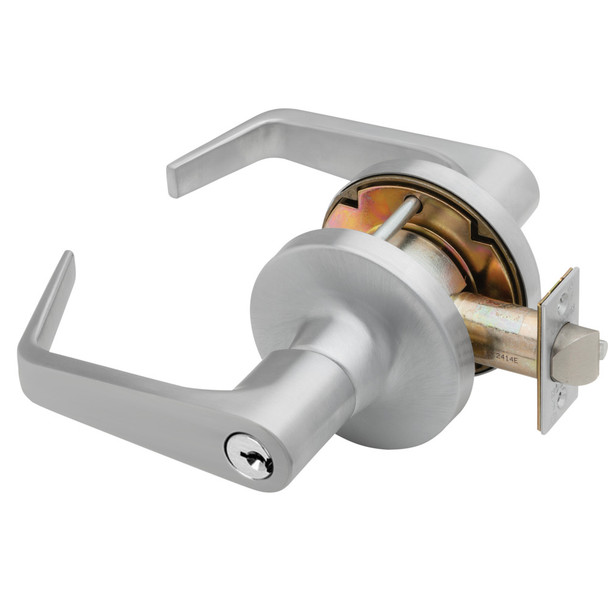

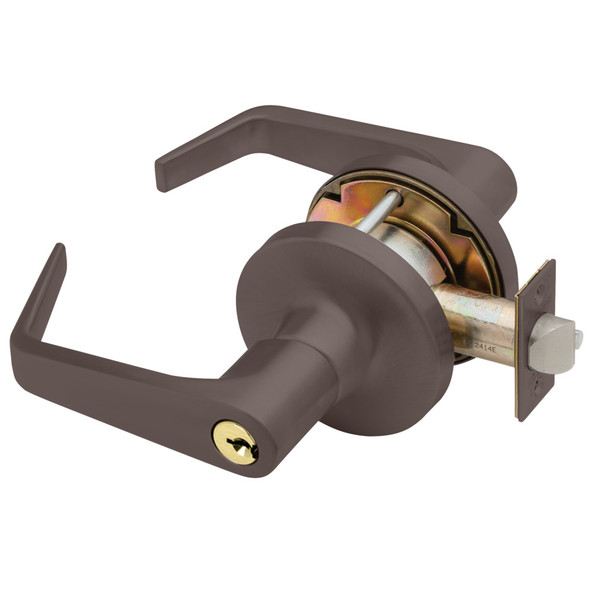

The Falcon T411CP6D is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. This robust lock exceeds ANSI/BHMA Grade 1 testing requirements, features a compression spring design, and accepts any manufacturer's cylinder. Ideal for schools, offices, and facilities demanding durability and reliability.
Designed for 1-3/4" to 2-1/8" standard door thickness with 2-3/4" backset; thin door adapters and alternative backsets are available. The removable cylinder design enables quick re-keying without removing the lock body, simplifying retrofits and maintenance. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, cylinder options, and installation. Contact us at sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G keyway standard (A keyway on I/C cores)
- Handing: Non-handed
- Material: Brass and cold formed steel, zinc plated and dichromated
- Springs: Stainless steel body; phosphor bronze cylinder springs
- Keys: Two nickel silver keys standard
- Latch: UL listed, 2-1/4" x 1-1/8" faceplate with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Trim: Brass or bronze roses with pressure cast levers
