Description

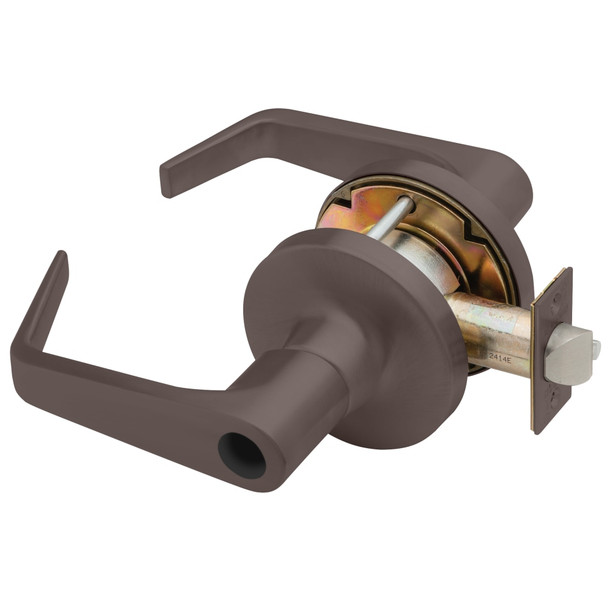

The Falcon T411LD D 613 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse institutional applications. Non-handed design with removable cylinders for quick re-keying simplifies retrofits. Compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliability at a solid price point.
Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" available). Brass and zinc-plated steel construction resists rust; stainless steel springs ensure durability. Ships with two nickel silver keys. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for specification guidance, thin-door adapters, or alternative backsets and keyways.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin, removable; 7-pin available
- Keyway: G standard (A standard on I/C core)
- Material: Brass/cold-formed steel (zinc-plated); stainless steel springs
- Handing: Non-handed
- Included: Two nickel silver keys
