Description

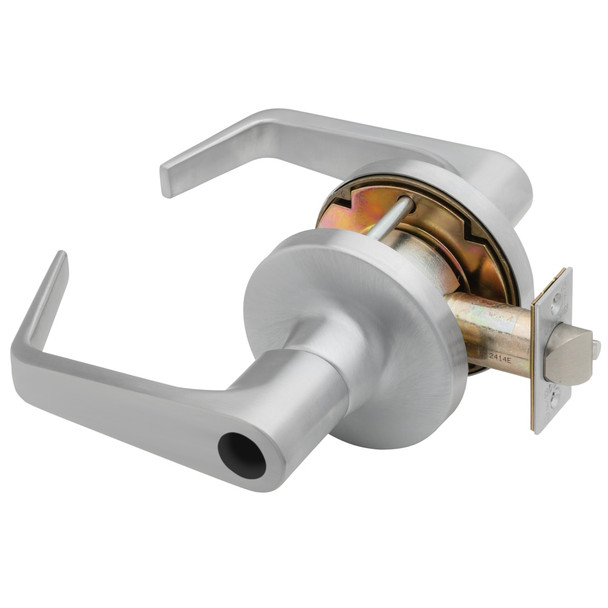

The Falcon T501LD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial environments. It exceeds ANSI/BHMA Grade 1 testing requirements and features a compression spring design with brass and stainless steel construction for durability and rust resistance. Ideal for schools, hospitals, offices and government buildings requiring reliable, abuse-resistant hardware.
This lock accommodates standard 1-3/4" to 2-1/8" door thickness with 2-3/4" backset, and removable cylinders enable quick re-keying without replacement. Non-handed design simplifies installation across your facility. As an authorized Falcon dealer, E.D. Locks provides expert configuration guidance and strike/adapter options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right backset, keyway, and cylinder type for your project.
Specifications
- Brand: Falcon
- Model: T501LD D 626 43-005
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8"
- Cylinder: 6-pin chambers, pinned in 5
- Keyway: "G" standard
- Construction: Brass/cold-formed steel, zinc-plated, stainless steel springs
- Handing: Non-handed
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Keys: Two nickel silver keys included
